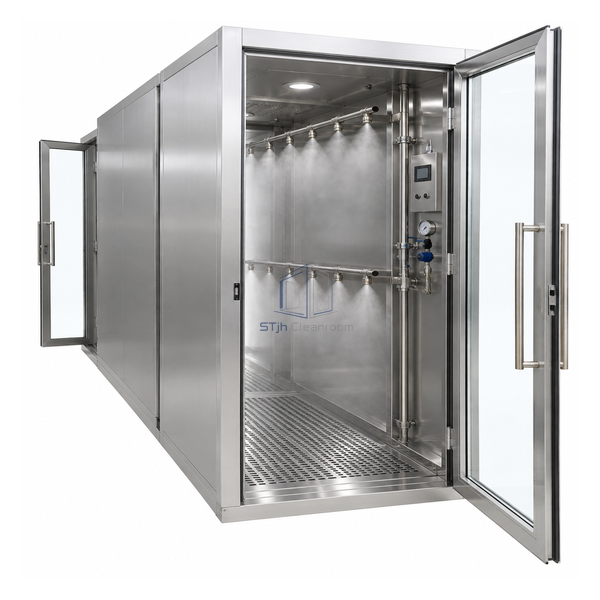

STjh extended 750 by 1940 mm stainless personnel misting shower with two fogging sections

STJH-PERSONNEL-MISTING-SHOWER-750X1940

Personnel Misting Shower 750 × 1940 mm Extended

A narrow two-metre misting chamber that adds dwell and process distance without widening the exit route.

1940 mm internal process depth
Narrow 750 mm passage
Programmable interlocked mist cycle

Request a Quote Browse Products

Product Introduction

This model retains a 750 mm internal width but extends depth to 1940 mm, doubling the compact unit's travel distance. The SS304 chamber uses fine mist, 6 bar compressed air and interlocked access to control garment contamination. It suits sequential decontamination steps arranged lengthwise when the airlock cannot be widened.

Key Features

Longitudinal process space

The extended chamber provides extra distance for mist exposure or separated standing positions along one route.

Width-preserving retrofit

A 750 mm interior fits narrow wall openings while gaining capacity in the travel direction.

Visible controlled operation

More than 400 lux illumination supports user checks during the programmed decontamination sequence.

Technical Parameters

Internal Chamber	750 W x 1940 D x 1800 H mm
External Body	1150 W x 2000 D x 2000 H mm
Standard Material	SS304 stainless steel
Material Upgrade	SS316 available
Air Utility	6 bar compressed air
Illuminance	>400 lux
Access	Electromagnetically interlocked doors
Cycle Control	Field-programmable mist operation
Electrical Choice	Single-phase or three-phase supply
Customization	Available based on the intended application and operating environment.

Applications

For pharmaceutical and biosafety exits needing a longer misting step but limited doorway width. Coordinate drainage, garment wetting limits, operator residence time and the next doffing or drying room along the two-metre route.

Solutions for Your Application

The compact chamber provides too little distance for the required mist exposure sequence.Use the 1940 mm depth to create a longer controlled zone without enlarging the passage width.

Expanding width would conflict with adjacent airlock equipment.Keep the 1150 mm exterior width and allocate the added enclosure length along the traffic path.

Available Options

Choose stainless grade, door motion, mist or deactivation medium, controls, drainage and drying interface. Process compatibility should be checked for garments, seals and handled compounds.
