STJH-PERFORATED-FACE-AIR-DIFFUSER-593-DN125

Perforated Face Air Diffuser 593 mm with DN125 Connection

Small-connection swirl diffuser concealed behind a perforated modular face.

Perforated front conceals the directional blade assembly.
Small connection suits modest supply branches.

Request a Quote Browse Products

Product Introduction

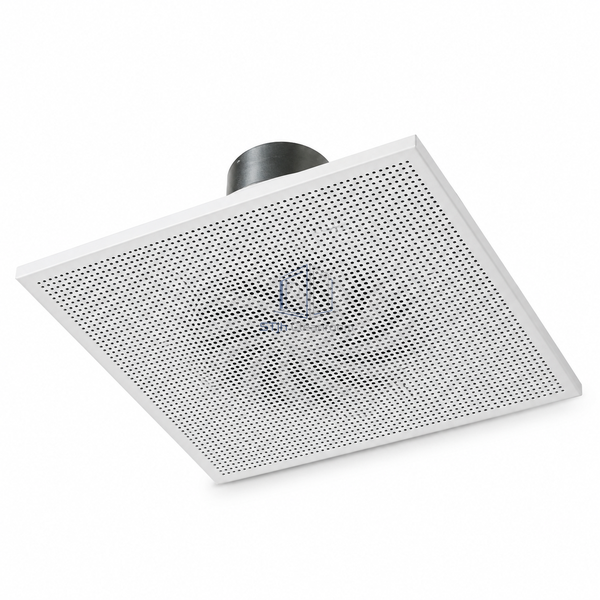

A 593 mm square face covers an internal fixed-blade swirl element connected to a DN125 supply. The perforated panel maintains a consistent ceiling appearance while the hidden element produces mixed-air discharge.

Key Features

Perforated front conceals the directional blade assembly.
Small connection suits modest supply branches.

Technical Parameters

Face Size	593 x 593 mm
Nominal Connection	125 mm
Face Style	Perforated square
Internal Element	Fixed-blade swirl unit
Face Material	Galvanized steel
Face Finish	RAL 9010 white powder coat
Swirl Unit Finish	RAL 9005 black
Discharge	Horizontal swirl
Connection Options	Vertical collar or horizontal plenum
Customization	Available for the intended modular ceiling and airflow arrangement.

Applications

Small support-room supply
Perforated-ceiling integration

Solutions for Your Application

Visible blades would interrupt the perforated ceiling appearance.

The swirl mechanism sits behind a consistent perforated face.

Available Options

Horizontal plenum box
Internal plenum lining

Planning a Perforated Face Air Diffuser 593 mm with DN125 Connection specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
