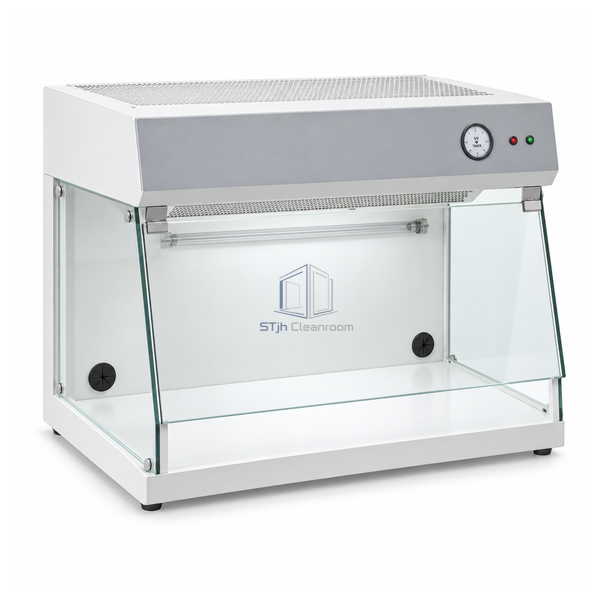

STjh 900 mm PCR preparation workstation with hinged glass sash and two plugged cable access ports

STJH-PCR-PREPARATION-WORKSTATION-900

PCR Preparation Workstation 900 mm

A three-foot ISO 5 PCR workstation offering an intermediate preparation deck for routine reagent and tube-rack layouts.

914 mm work class
Approximately 239 mm opening
Routine batch capacity

Request a Quote Browse Products

Product Introduction

The 914 mm enclosure adds a separate staging area beside the active pipetting zone without expanding to the four-foot format. A nominal 239 mm opening preserves direct access to reagents and tubes while the vertical downflow sweeps the wider work surface.

Key Features

Separated preparation zones

The three-foot deck can keep unopened reagents apart from active pipetting and completed tubes.

Accessible front opening

The defined access height supports normal pipetting posture and rack movement.

Stable filtered environment

Vertical HEPA downflow provides cleaner air over the assay setup than an open laboratory bench.

Technical Parameters

Nominal Width	914 mm / 3 ft
Work-Zone Classification	ISO 5 class
Operating Opening	Approximately 239 mm
Downflow Range	0.23–0.33 m/s
Supply Filtration	HEPA-filtered vertical air
UV System	254 nm timed lamp
Lighting	Internal task illumination
Work Layout	Pipetting zone plus reagent staging
Intended Process	Routine pre-amplification PCR setup
Customization	Worktop, UV timer, support stand and electrical configuration can be adapted to the laboratory's PCR preparation method.

Applications

Routine diagnostic PCR setup, research assay preparation and master-mix batching that uses multiple tube or reagent racks.

Solutions for Your Application

A two-foot enclosure cannot separate clean reagents from active pipetting.Assign dedicated staging and manipulation areas across the 914 mm surface.

Operators may assume a PCR workstation is a biosafety cabinet.Use it for clean reagent preparation only; select a separate containment device for hazardous or infectious samples.

Available Options

UV protection panel, support base, electrical outlets, work-surface finish and cable access can be configured.
