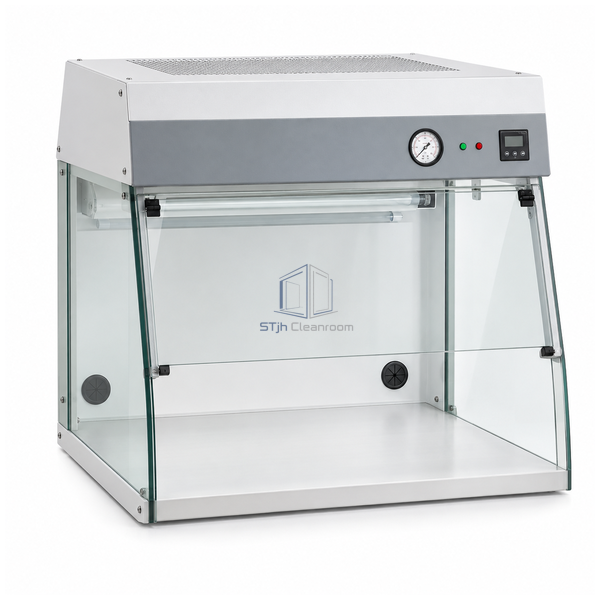

STjh 600 mm PCR preparation workstation with a compact glass enclosure, upper lamp tubes and gray control fascia

STJH-PCR-PREPARATION-WORKSTATION-600

PCR Preparation Workstation 600 mm

A two-foot PCR enclosure combining a HEPA-filtered work zone and timed UV exposure for low-throughput pre-amplification setup.

610 mm nominal width
0.23–0.33 m/s downflow
Timed 254 nm UV lamp

Request a Quote Browse Products

Product Introduction

The 610 mm version isolates one defined PCR preparation task from the surrounding laboratory. Its compact deck suits a pipette set, reagent rack and small consumables, while vertical filtered airflow and a closable UV protection panel support the between-run cleaning routine.

Key Features

Dedicated small assay zone

The two-foot footprint limits unrelated materials from accumulating around a low-volume master-mix workflow.

Filtered vertical air

HEPA-supplied downflow creates an ISO 5-class preparation area without personnel or biohazard containment claims.

Controlled UV interval

The germicidal lamp operates with a timer while the protection panel is in place between preparation sessions.

Technical Parameters

Nominal Width	610 mm / 2 ft
Work-Zone Air Quality	ISO 5 class
Downflow Velocity	0.23–0.33 m/s
Supply Filter	HEPA, nominal 99.99% at 0.3 µm
UV Wavelength	254 nm
UV Control	Timed cycle with protection panel
Airflow Direction	Vertical filtered downflow
Front Access	Open working front
Primary Duty	Low-throughput pre-amplification setup
Customization	Electrical supply, UV controls, support base and internal service access can be configured for the assay station.

Applications

Low-volume PCR master-mix preparation, aliquoting of clean reagents and pre-amplification assay setup in research or diagnostic laboratories.

Solutions for Your Application

A shared bench exposes clean PCR reagents to routine laboratory dust and traffic.Dedicate the compact filtered enclosure to pre-amplification materials and keep amplified products outside it.

The UV lamp could expose personnel during a cleaning cycle.Close the protection panel and run only the preset unattended interval before reopening the work zone.

Available Options

UV timing, electrical configuration, mobile base, work-surface material and sealed service access may be selected.

Planning a PCR Preparation Workstation 600 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
