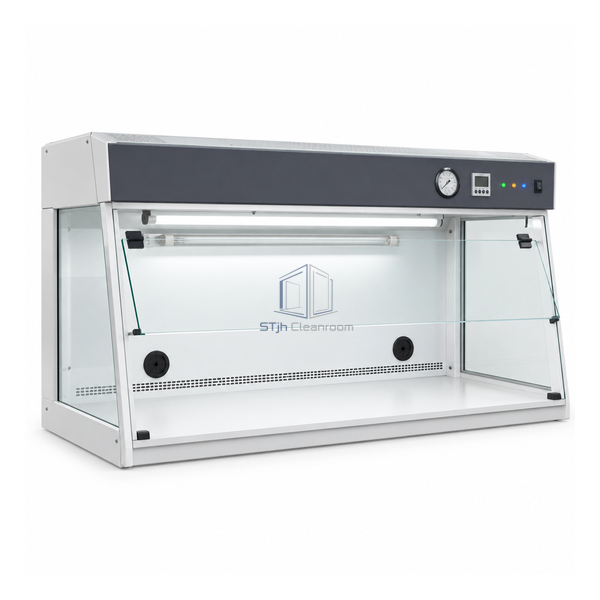

STjh 1200 mm PCR preparation workstation showing its long white work deck, clear sides and dark gray control panel

STJH-PCR-PREPARATION-WORKSTATION-1200

PCR Preparation Workstation 1200 mm

A four-foot PCR preparation enclosure with the largest standard deck and two sealed cable portals for equipment-supported workflows.

1219 mm preparation deck
Two sealed cable portals
Equipment-ready layout

Request a Quote Browse Products

Product Introduction

This 1219 mm workstation is sized for higher sample counts or compact liquid-handling equipment. Two cable portals allow powered devices to sit within the filtered zone without routing leads across the front opening, preserving a cleaner and less obstructed work layout.

Key Features

High-capacity staging

The four-foot surface accommodates multiple reagent groups, plates and tube racks in a defined sequence.

Protected cable routing

Sealed portals bring power or data leads into the enclosure without using the working opening.

Between-run UV treatment

A timed germicidal lamp supports the established surface-decontamination routine after materials are removed.

Technical Parameters

Nominal Width	1219 mm / 4 ft
Airflow Velocity	0.23–0.33 m/s vertical downflow
Supply Filter	HEPA, nominal 99.99% at 0.3 µm
Work-Zone Air Quality	ISO 5 class
Cable Portals	2 sealed penetrations
UV Lamp	254 nm with timer
Front Configuration	Open-access preparation enclosure
Equipment Capacity	Small automation or multi-rack workflow
Product Protection	Filtered downflow over the work surface
Customization	Cable-portal position, electrical services, worktop and support arrangement can be tailored to the installed equipment.

Applications

Higher-throughput PCR reagent preparation, plate-based assay setup and pre-amplification workflows using compact automated pipetting devices.

Solutions for Your Application

Power leads draped through the front opening obstruct clean working access.Route equipment cables through the two sealed rear portals and keep the working opening clear.

A wide deck can encourage mixing clean and completed materials.Define a one-way arrangement from reagent staging through pipetting to completed-plate holding.

Available Options

Portal position, internal outlets, base stand, UV controls and equipment-specific surface cutouts can be selected.

Planning a PCR Preparation Workstation 1200 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
