STJH-PAPER-HONEYCOMB-CLEANROOM-SANDWICH-PANEL-75-SS

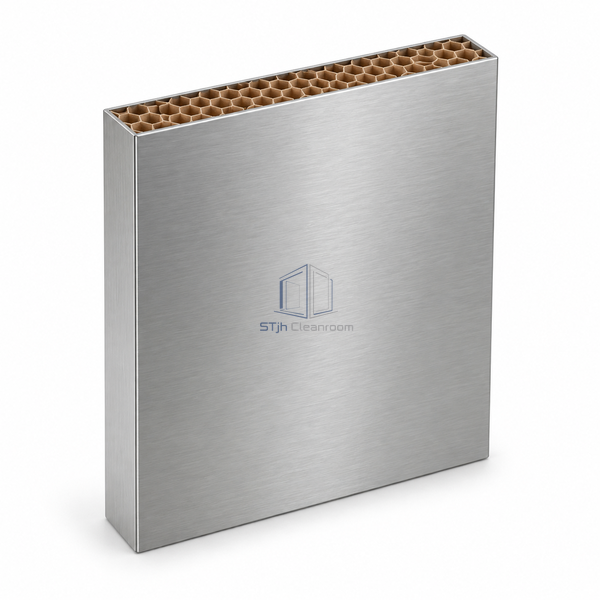

Paper Honeycomb Cleanroom Sandwich Panel 75 mm Stainless-Faced

Stainless room surfaces over a lightweight paper-cellular center.

Stainless faces avoid a painted room-side layer.
Cellular construction keeps the infill lightweight.

Request a Quote Browse Products

Product Introduction

The stainless skins provide an unpainted metal finish while a paper honeycomb maintains separation between them. Framed closures protect the cellular center in this medium-depth dry-room module.

Key Features

Stainless faces avoid a painted room-side layer.
Cellular construction keeps the infill lightweight.

Technical Parameters

Core Material	Paper honeycomb
Panel Thickness	75 mm
Effective Width	980 or 1180 mm
Maximum Length	9000 mm wall panel
Frame Thickness	0.6–0.8 mm
Facing Material	304 stainless steel
Core Form	Expanded paper cells
Surface Finish	Natural stainless steel
Joint Type	Framed panel connection
Customization	Available to suit the application and operating conditions.

Applications

Dry food-handling rooms
Pharmaceutical packaging walls

Solutions for Your Application

The cleaning surface must be stainless without a dense mineral core.

Stainless skins are combined with paper-cell infill.

An exposed paper edge is unsuitable at a partition end.

The four-sided frame closes the cellular perimeter.

Available Options

Alternative cover widths
Factory-finished ends

Planning a Paper Honeycomb Cleanroom Sandwich Panel 75 mm Stainless-Faced specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
