STJH-PAPER-HONEYCOMB-CLEANROOM-SANDWICH-PANEL-50-PPGI

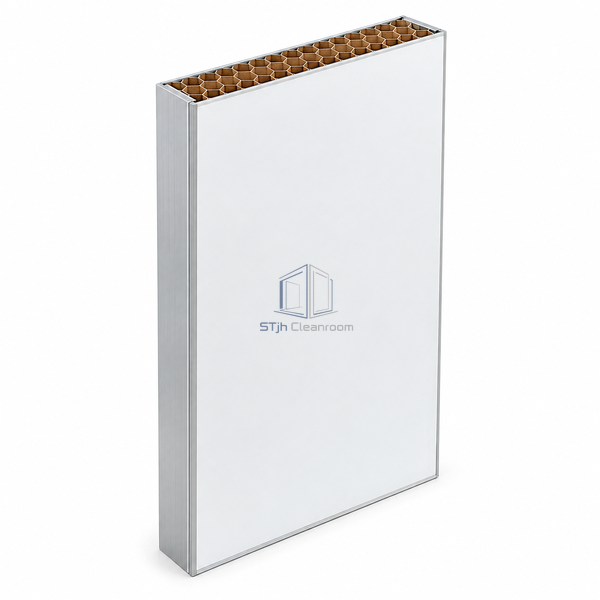

Paper Honeycomb Cleanroom Sandwich Panel 50 mm PPGI Wall

Light cellular-core partition with coated galvanized steel faces.

Cellular infill reduces solid core material.
Enclosed edges keep the paper structure protected.

Request a Quote Browse Products

Product Introduction

A paper honeycomb separates the two metal skins and supports their broad surfaces. Four-sided framing closes the cell edges, turning the lightweight infill into a manageable dry-room wall module.

Key Features

Cellular infill reduces solid core material.
Enclosed edges keep the paper structure protected.

Technical Parameters

Core Material	Paper honeycomb
Panel Thickness	50 mm
Effective Width	980 or 1180 mm
Maximum Wall Length	9000 mm
Steel Facing Thickness	0.4–0.8 mm
Frame Thickness	0.6 or 0.8 mm
Facing Material	PPGI
Surface Finish	Polyester-coated steel
Joint Type	Four-side framed modular connection
Customization	Available for the intended application and operating environment.

Applications

Dry packaging partitions
Moderate-duty clean support rooms

Solutions for Your Application

Heavy infill complicates manual positioning.

The cellular paper center uses less solid material within the panel.

Paper edges should not remain exposed after assembly.

Perimeter closures isolate the cells from the room surface.

Available Options

Panel width choice
Custom module lengths

Planning a Paper Honeycomb Cleanroom Sandwich Panel 50 mm PPGI Wall specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
