STJH-OPPOSED-BLADE-VOLUME-DAMPER-600X600-SS

Opposed Blade Volume Control Damper 600 x 600 mm Stainless Steel

Large stainless volume damper for cleanable terminal and duct interfaces.

Stainless metal suits corrosion-conscious terminal selection.
Square full-face blade group balances broad openings.

Request a Quote Browse Products

Product Introduction

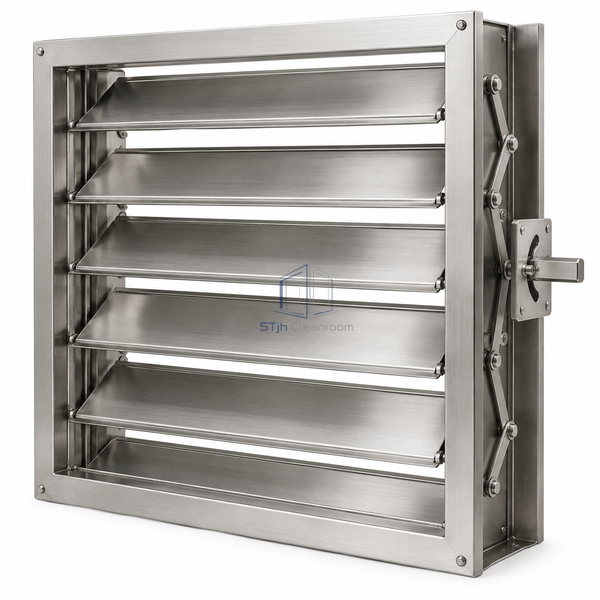

A 600 mm square stainless frame carries a linked opposed-blade group. Its expanded face suits larger grilles, while the manual operating mechanism remains separate from the room-side air-direction components.

Key Features

Stainless metal suits corrosion-conscious terminal selection.
Square full-face blade group balances broad openings.

Technical Parameters

Nominal Frame	600 x 600 mm
Material	Stainless steel
Blade Action	Opposed
Blade Coupling	Mechanical linkage
Operator Choice	Slotted or face lever
Mounting Choice	Grille or duct
Air Function	Volume control
Actuation	Manual
Power Supply	Not required
Customization	Available for the cleaning conditions and intended air path.

Applications

Large hygienic return grilles
Stainless exhaust-terminal balancing

Solutions for Your Application

A coated damper is undesirable behind a stainless terminal.

The stainless assembly continues the selected metal construction through the volume-control section.

Available Options

Remote upstream mounting frame
Lever-access configuration

Planning a Opposed Blade Volume Control Damper 600 x 600 mm Stainless Steel specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
