STJH-NYLON-MESH-PRE-FILTER-592X287X21

Washable Nylon Mesh Pre-Filter 592 × 287 × 21 mm Half-Module

A 21 mm half-width nylon filter for split banks that need reusable coarse screening at 1560 m3/h.

287 mm half-module width
1560 m3/h rated airflow
Washable coarse nylon screen

Request a Quote Browse Products

Product Introduction

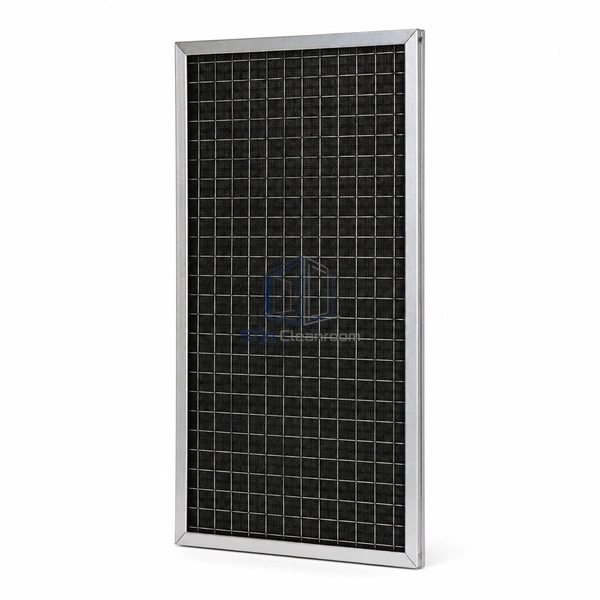

With a 592 × 287 mm face, this washable black nylon panel is sized for half-module filter-bank cells. The 21 mm reinforced frame supports 1560 m3/h and can use layer counts within the referenced G2–G4 range. It solves narrow return-air and split-AHU layouts without cutting down a full-size panel or leaving an unsupported edge.

Key Features

Purpose-built half module

The 287 mm width fits fractional bank cells cleanly without field trimming the mesh.

Matched reduced airflow

Its 1560 m3/h rating reflects the smaller face rather than applying a full-module duty to a narrow panel.

Reusable narrow-bank protection

Black nylon media can be washed and returned to split AHU or return-grille service.

Technical Parameters

Panel Dimensions	592 × 287 × 21 mm
Rated Air Volume	1560 m3/h
Media Type	Washable black nylon mesh
Frame Construction	Reinforced metal
Efficiency Family	G2–G4 by selected layer count
Module Width	Half module, 287 mm
Media Service	Washable and reusable
Installation	Split filter bank or narrow return grille
Filter Function	Large-particle and lint screening
Customization	Available based on the intended application and operating environment.

Applications

Designed for split-width air handlers, perimeter return grilles and cleanroom support equipment with 287 mm filter cells. It is appropriate for reusable coarse screening where the available opening is narrower than a standard full module.

Solutions for Your Application

A full-size nylon panel must be cut and loses perimeter support.Use the factory-framed 287 mm half module to preserve mesh tension and edge retention.

The narrow panel is assigned the same airflow as a full module.Base system balancing on the documented 1560 m3/h half-module rating.

Available Options

Specify layer count, exact clear opening, frame finish, support grid and a pull tab for narrow-bank access.

Planning a Washable Nylon Mesh Pre-Filter 592 × 287 × 21 mm Half-Module specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
