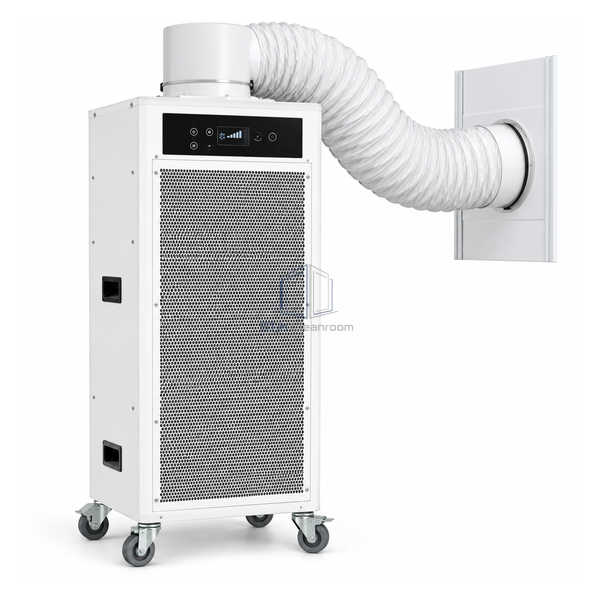

STjh high-flow isolation room filtration unit with a discharge adapter

STJH-NEGATIVE-PRESSURE-ISOLATION-ROOM-UNIT-850CFM

Negative-Pressure Isolation Room Unit 850 CFM High-Flow

A 230 V portable HEPA unit with up to 850 CFM output for high-airflow room conversion and emergency surge isolation.

Up to 850 CFM
230 V export configuration
Negative pressure or recirculation

Request a Quote Browse Products

Product Introduction

This export-voltage model prioritizes peak airflow. Its manufacturer-listed 850 CFM capacity suits larger patient rooms or rapid surge conversion where the 475 and 500 CFM units cannot provide the required room air change or pressure offset.

Key Features

High peak output

The 850 CFM rating addresses larger spaces and higher air-change targets.

Dual operating purpose

The unit can support negative-pressure discharge or filtered recirculation within the room.

International supply format

The 230 V, 50/60 Hz input suits export installations with compatible circuits.

Technical Parameters

Peak Airflow	850 CFM
Final Filter	HEPA
Power Supply	230 V
Frequency	50/60 Hz
Mounting	Portable floor unit
Operating Mode 1	Negative-pressure room conversion
Operating Mode 2	In-room HEPA recirculation
Airflow Control	Adjustable below peak output
Primary Duty	Emergency or high-airflow patient isolation
Customization	Discharge adapter, electrical connection and room interface can be tailored to the deployment location.

Applications

Emergency surge isolation, large patient-room conversion and high-capacity HEPA recirculation in clinical facilities.

Solutions for Your Application

A medium-capacity unit cannot reach the target room air changes.Use the 850 CFM platform after calculating room volume, leakage and required pressure offset.

The available electrical circuit differs from 120 V equipment.Match the unit to a compatible 230 V, 50/60 Hz supply before deployment.

Available Options

Discharge duct kits, room adapters and mobile placement accessories can be matched to the emergency plan.

Planning a Negative-Pressure Isolation Room Unit 850 CFM High-Flow specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
