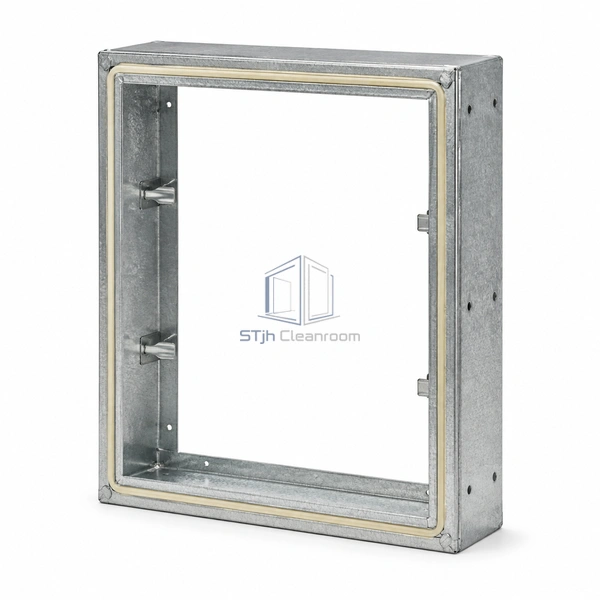

Modular Air Filter Holding Frame 508 × 610 mm

A five-sixths-width frame that closes intermediate bank dimensions without trimming a standard full module.

508 mm intermediate width
490 x 592 mm filter fit
91 mm common frame depth

Request a Quote Browse Products

Product Introduction

This 508 x 610 x 91 mm frame retains the standard 91 mm depth but reduces the clear filter face to suit a 490 x 592 mm element. It is useful in retrofit walls designed around intermediate module widths or where a full 610 mm cell would exceed the available casing. The same snap-tab retention, gasket choice and galvanized or stainless construction allow it to combine with other frame widths in one sealed bank.

Key Features

Retrofit width matching

The intermediate module uses existing casing width more efficiently than blanking part of a full cell.

Mixed-bank compatibility

A common depth lets this frame align with full and half modules in one filter wall.

Repeatable filter loading

Snap compression tabs seat the narrower header against the selected flange gasket.

Technical Parameters

Frame Dimensions	508 x 610 x 91 mm
Compatible Filter Size	490 x 592 mm
Frame Material	Galvanized or stainless steel
Gasket	With or without PU gasket
Filter Retention	Replaceable snap compression tabs
Module Width	Five-sixths of a 610 mm full module
Bank Assembly	Modular bolted frame wall
Frame Depth	91 mm
Primary Duty	Intermediate-width retrofit cell
Customization	Available based on the intended application and operating environment.

Applications

For retrofit filter walls, European intermediate-module banks and air handlers that use 490 mm-wide filter elements.

Solutions for Your Application

An intermediate frame is mixed into a bank without preserving aligned sealing flanges.Use a common datum and support rail so all 91 mm-deep frames share one flat gasket plane.

Replacement staff install a 592 mm-wide full module in the narrower cell.Label the 490 x 592 mm position clearly and maintain separate spare-filter identification.

Available Options

Confirm metal grade, gasket, tab arrangement, bank joining holes, prefilter support, 490 mm element depth and casing seal.
