STJH-MODULAR-CLEANROOM-CEILING-PANEL-HPL-1250

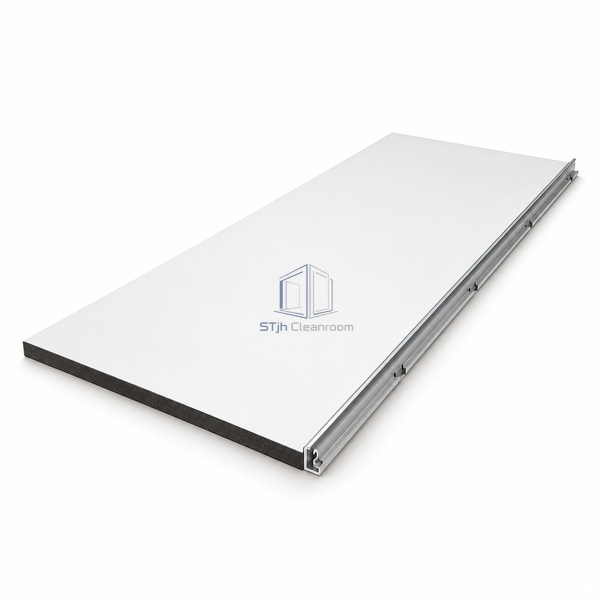

Modular Cleanroom Ceiling Panel 1250 mm HPL Hermetic

Long HPL-faced ceiling module for fewer overhead seams.

Laminate face provides a nonmetal room surface.
Long modules reduce transverse joints.
Click-housed profiles align adjacent ceiling edges.

Request a Quote Browse Products

Product Introduction

The laminate-faced sandwich accepts an aluminum support profile between adjoining panels. Threaded tension hardware with an adjustment ring connects the ceiling run to overhead structure.

Key Features

Laminate face provides a nonmetal room surface.
Long modules reduce transverse joints.
Click-housed profiles align adjacent ceiling edges.

Technical Parameters

Panel Width	1250 mm
Panel Length	2000–5000 mm
Facing	HPL
Panel Form	Laminated sandwich
Support Profile	Aluminum
Profile Engagement	Click-in between panels
Suspension	Threaded tension bar
Adjustment	Ring adjustment
Ceiling Arrangement	Hermetic suspended
Customization	Dimensions and insulation can suit the intended operating environment.

Applications

Pharmaceutical corridor ceilings
Biotechnology suite overhead enclosures

Solutions for Your Application

Many small tiles increase seam maintenance.

Long-format modules reduce the number of cross joints.

The ceiling must meet walls at different heights.

The system supports walls ending at or continuing above the ceiling.

Available Options

Insulation selection
Integrated light openings

Planning a Modular Cleanroom Ceiling Panel 1250 mm HPL Hermetic specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
