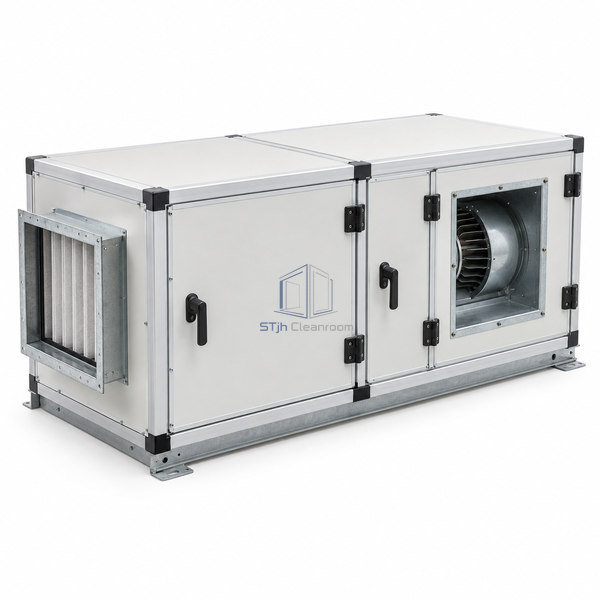

STjh 1082 x 1082 mm modular air handling unit with compact filter and fan modules, three-quarter main view on white.

STJH-MODULAR-AIR-HANDLING-UNIT-1082X1082

Modular Air Handling Unit 1082 × 1082 mm

A compact size-class 10 modular AHU with a square 1082 mm cabinet face for controlled rooms that need configurable air treatment in limited plant space.

1082 mm square cabinet
Compact modular section layout
Indoor or outdoor configuration

Request a Quote Browse Products

Product Introduction

This small modular air handler uses a documented cabinet cross-section of approximately 1082 x 1082 mm. Its reduced component face suits a compact filter bank, coil and fan section, while the sectional casing allows the air-treatment sequence to be selected for the room duty rather than fixed at manufacture.

Key Features

Space-conscious module

The size-class 10 face reduces plant-room footprint while retaining separate access to the principal air-treatment components.

Selectable treatment sequence

Filter, heating, cooling and fan sections can be arranged around the pressure and cleanliness needs of a small system.

Serviceable cabinet

Section doors give technicians direct access without dismantling an entire monobloc unit.

Technical Parameters

Cabinet Cross-Section	Approximately 1082 x 1082 mm
Documented Size Class	10
Airflow Family	Part of a configurable 750-110000 m3/h product family
Casing Type	Sectional double-skin cabinet
Filter Arrangement	Compact single- or multi-stage bank as selected
Coil Configuration	Chilled-water, hot-water or DX section options
Fan Section	Direct-drive plug fan option
Installation	Indoor or outdoor arrangement
Access	Service doors on selected sections
Customization	Section sequence, casing finish and connections can be configured for the intended application and operating environment.

Applications

Laboratory supply air, clean-utility rooms, pilot production areas and small controlled suites requiring a configurable central air handler.

Solutions for Your Application

The available plant room cannot accept a broad filter and coil face.Use the 1082 mm square size class and select only the treatment sections required by the room load.

Maintenance access is limited around compact equipment.Choose door orientation and section order so filters, coils and the fan remain reachable from the available service aisle.

Available Options

Filter grades, coil type, plug-fan arrangement, heat-recovery section, access side, outdoor weatherproofing and control package are selectable.
