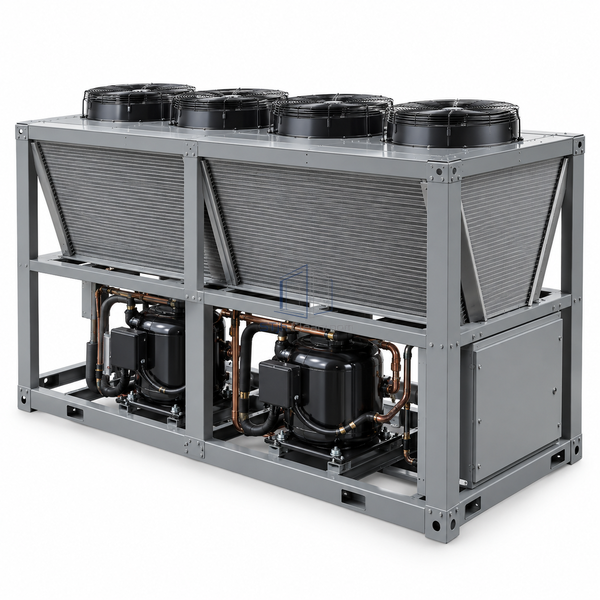

STjh 60-ton modular air-cooled scroll chiller with four condenser fans and a wide heavy frame on white.

STJH-MODULAR-AIR-COOLED-SCROLL-60TON

Modular Air-Cooled Scroll Chiller 60-Ton

A high-capacity 60-ton modular chiller with two 30-ton scroll compressors, four 2 hp fans and 47200 CFM condenser airflow.

60-ton modular capacity
Four 2 hp condenser fans
4350 lb operating weight

Request a Quote Browse Products

Product Introduction

This largest selected module doubles the 30-ton block with two 30-ton tandem scroll compressors and four 2 hp condenser fans. At 47200 CFM condenser airflow and 4350 lb operating weight, it provides substantial incremental capacity while retaining a modular array architecture.

Key Features

Large incremental block

Each module adds 60 tons, reducing the number of cabinets required in a high-capacity modular plant.

Four-fan heat rejection

The expanded condenser system moves 47200 CFM through the larger coil surface.

Array-based resilience

Multiple modules can be sequenced so production load is shared across serviceable equipment blocks.

Technical Parameters

Nominal Module Capacity	60 tons
Compressors	2 x 30-ton tandem scroll
Condenser Fans	4 x 2 hp
Condenser Airflow	47200 CFM
Operating Weight	4350 lb
Condenser	Large air-cooled coil bank
Chilled-Water Interface	Modular common-header arrangement
Control	Compressor, fan and array sequencing
Installation	Engineered outdoor modular base
Customization	Number of modules, hydronic package and staging logic can be configured for the intended application and operating environment.

Applications

High-capacity process cooling, large pharmaceutical plants, electronics manufacturing and expandable clean-facility utility systems.

Solutions for Your Application

A high-load modular plant would require too many small 10-ton cabinets.Use 60-ton blocks to reduce module count while retaining array-level staging.

The 4350 lb module and 47200 CFM discharge affect structural and spacing requirements.Coordinate the operating load, base rails and clear condenser-air paths for every module in the bank.

Available Options

Array size, pump package, master sequencer, acoustic treatment, low-ambient kit, coil coating, buffer storage and power configuration can be selected.

Planning a Modular Air-Cooled Scroll Chiller 60-Ton specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
