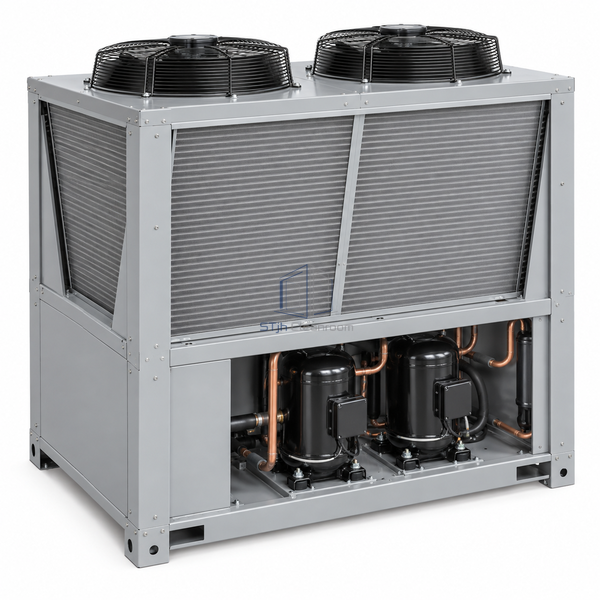

STjh 10-ton modular air-cooled scroll chiller with two condenser fans and tandem scroll compressors on white.

STJH-MODULAR-AIR-COOLED-SCROLL-10TON

Modular Air-Cooled Scroll Chiller 10-Ton

A 10-ton modular air-cooled chiller with two 5-ton tandem scroll compressors, two condenser fans and 1430 lb operating weight.

10-ton module capacity
Two 5-ton scroll compressors
8400 CFM condenser airflow

Request a Quote Browse Products

Product Introduction

This smallest modular chiller pairs two 5-ton scroll compressors with two 1 hp condenser fans delivering 8400 CFM. The 1430 lb module supports small process loops and allows future capacity to be added in discrete modules rather than installing a large initial machine.

Key Features

Small incremental capacity

A single 10-ton module starts a low-load process loop without committing to a high-capacity central chiller.

Tandem compressor staging

Two scroll compressors divide capacity within the module for basic part-load response.

Modular growth path

Additional matching modules can be connected as production or resilience needs increase.

Technical Parameters

Nominal Module Capacity	10 tons
Compressors	2 x 5-ton tandem scroll
Condenser Fans	2 x 1 hp
Condenser Airflow	8400 CFM
Operating Weight	1430 lb
Heat Rejection	Outdoor air-cooled coil
Evaporator Circuit	Common process chilled-water interface
Capacity Control	Compressor staging
Installation	Outdoor modular array
Customization	Module count, hydronic accessories and control sequence can be configured for the intended application and operating environment.

Applications

Small process tools, laboratory chilled-water loops, pilot cleanrooms and phased utility expansion projects.

Solutions for Your Application

The initial process load is small but future production may require more cooling.Install the 10-ton module first and reserve headers, power and space for later modules.

A single fixed compressor would cycle frequently at partial load.Use the tandem scroll arrangement to stage the module across smaller capacity steps.

Available Options

Module quantity, pump and tank package, freeze protection, low-ambient controls, coil coating, isolation valves and master sequencing are available.
