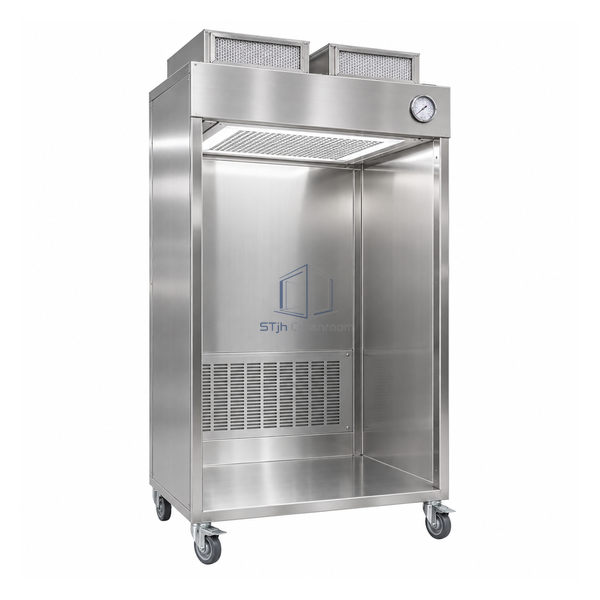

STjh compact 800 mm stainless mobile sampling booth with EU13 roof filter, pressure gauge and four casters

STJH-MOBILE-SAMPLING-BOOTH-800X800X1200

Mobile Sampling Booth 800 × 800 × 1200 mm

The narrowest tabulated mobile sampling vehicle for small raw-material containers in restricted warehouse aisles.

800 x 800 mm narrow footprint
Four-caster mobile chassis
EU13 supply and exhaust filtration

Request a Quote Browse Products

Product Introduction

This 800 x 800 x 1200 mm sampling vehicle uses 304 stainless construction and four casters to bring a local clean-air zone to small bags, bottles and compact containers. The family specifies EU13 supply and exhaust HEPA stages, pressure monitoring and a 0.25-0.6 m/s air-velocity range. Its narrow square footprint is optimized for tight warehouse bays.

Key Features

Tight-aisle access

The 800 mm width reaches material locations that cannot accommodate a broad booth.

Move-to-material sampling

Casters reduce the need to transport unopened source containers to a fixed sampling room.

Visible filter condition

A pressure gauge supports routine observation of airflow-system resistance.

Technical Parameters

Overall Dimensions	800 W x 800 D x 1200 H mm
Construction	304 stainless steel
Mobility	Four caster wheels
Supply Filter	EU13 HEPA family specification
Exhaust Filter	EU13 HEPA family specification
Air Velocity	0.25-0.6 m/s family range
Monitoring	Pressure gauge
Clean-Zone Basis	ISO Class 5 / Class 100 row designation
Typical Load	Small bags, bottles and compact containers
Customization	Available based on the intended application and operating environment.

Applications

For small raw-material sampling in restricted pharmaceutical warehouse bays. The booth must be stationary with casters secured before opening a container, and the material assessment must confirm filtration suitability.

Solutions for Your Application

A fixed sampling booth is distant from small containers stored in narrow aisles.Move the 800 mm-wide vehicle to the material location and lock it before use.

Operators lack a simple indication of filter loading.Use the pressure gauge to track resistance against the maintenance limits.

Available Options

Configure electrical supply, lighting, work surface, caster locks, pressure alarm and stainless finish. Filter arrangement should match the sampled powder or liquid.
