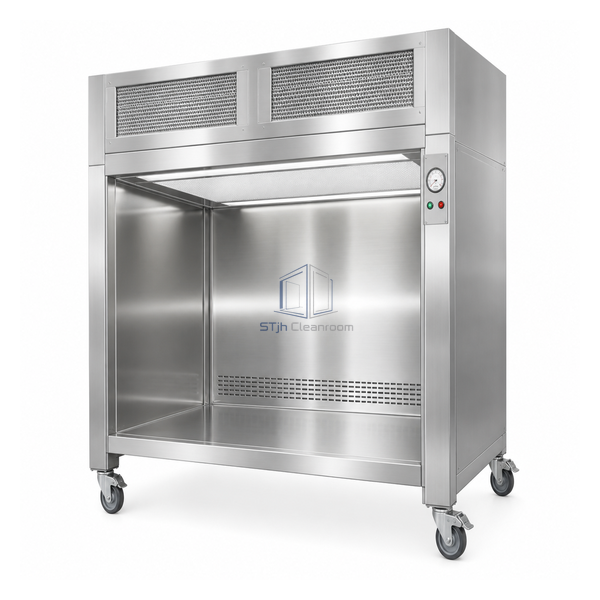

STjh medium 1000 mm double-wall stainless sampling booth with supply-exhaust HEPA stages and casters

STJH-MOBILE-SAMPLING-BOOTH-1000X800X1200

Mobile Sampling Booth 1000 × 800 × 1200 mm

A medium-width sampling vehicle that adds 200 mm of handling space for routine drum and container access.

1000 mm expanded working width
Double-wall 304 stainless side panels
Differential-pressure monitoring

Request a Quote Browse Products

Product Introduction

The 1000 x 800 x 1200 mm model retains the same depth and height as the narrow vehicle but adds 200 mm of working width. Double-wall 304 stainless side panels, caster wheels and differential-pressure monitoring support routine movement and use. The broader face provides extra hand clearance around medium container openings without the footprint of a full dispensing booth.

Key Features

Added container clearance

The extra 200 mm width improves access around medium drums and sampling tools.

Mobile warehouse deployment

Caster wheels allow the station to move between designated raw-material locations.

Filter-status monitoring

Differential-pressure indication helps identify changes in airflow resistance.

Technical Parameters

Overall Dimensions	1000 W x 800 D x 1200 H mm
Construction	304 stainless steel double-wall side panels
Mobility	Caster wheels
Air Velocity	0.25-0.6 m/s family range
Monitoring	Pressure gauge and differential-pressure indication
Clean-Zone Basis	ISO Class 5 / Class 100 row designation
Power	Single-phase family connection
Working Width Increase	200 mm over the 800 mm model
Typical Load	Medium drums and raw-material containers
Customization	Available based on the intended application and operating environment.

Applications

For routine warehouse drum sampling where operators need more room than the 800 mm model provides. Confirm aisle access, container position and local power connection before establishing the sampling point.

Solutions for Your Application

The 800 mm vehicle is too narrow for comfortable sampling around a medium drum.Use the 1000 mm width to add hand and tool clearance at the container opening.

Filter loading changes without a visible warning to the operator.Track the differential-pressure indication and service filters at the defined threshold.

Available Options

Select power connection, filter stages, pressure alarm, lighting, work surface and caster design. Side-panel and opening details can be matched to the container range.

Planning a Mobile Sampling Booth 1000 × 800 × 1200 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
