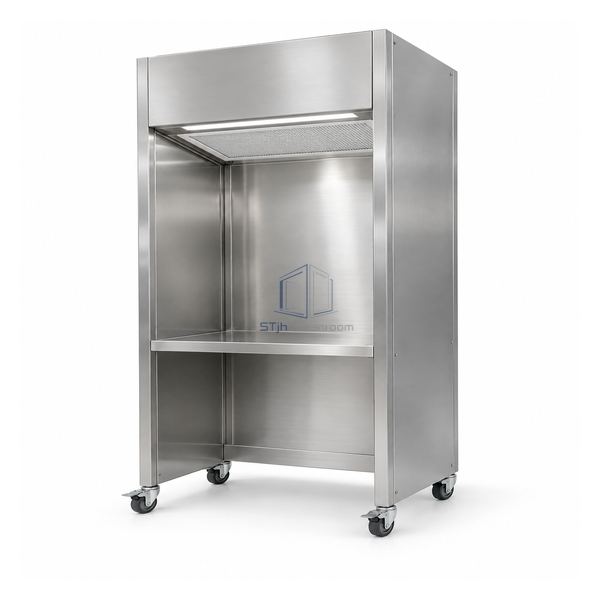

STjh compact 710 mm mobile laminar workstation with insulated stainless walls, H14 roof filter and locking casters

STJH-MOBILE-LAMINAR-WORKSTATION-710X725

Mobile Laminar Flow Workstation 710 × 725 mm

The narrowest mobile stainless workstation for compact sampling, inspection and sterile-transfer tasks.

710 mm narrow work width
F5/F7 plus H14 filtration
Lockable stainless mobile chassis

Request a Quote Browse Products

Product Introduction

This single-bay unit provides a 710 x 725 x 1830 mm internal zone inside a 760 x 1350 x 2200 mm mobile body. F5 and F7 prefilters protect an H14 minipleat HEPA filter, and the system delivers a nominal 90 fpm airflow with ±20% tolerance. Lockable casters suit small work areas and frequent relocation.

Key Features

Narrow-aisle mobility

The 760 mm external width allows deployment where broader mobile stations are difficult to position.

Three-stage filtration

F5 and F7 stages reduce load on the H14 minipleat final filter.

Contained task height

The 1830 mm internal height accommodates small apparatus and standing material handling.

Technical Parameters

Internal Dimensions	710 W x 725 D x 1830 H mm
External Dimensions	760 W x 1350 D x 2200 H mm
Air Velocity	90 fpm ±20%
Prefilters	F5 and F7
Final Filter	H14 minipleat HEPA
Exterior Material	304 stainless steel
Side Panels	PUF-insulated 304 stainless steel
Mobility	Smooth lockable casters
Power Supply	220-240 V, 50 Hz
Customization	Available based on the intended application and operating environment.

Applications

For small sampling, inspection and sterile-transfer activities that need a movable contained clean-air zone. Confirm the long 1350 mm body depth fits the travel route despite its narrow width.

Solutions for Your Application

A wide mobile workstation cannot enter restricted production aisles.Use the 760 mm-wide body and survey the full caster travel path.

Prefilter loading shortens final-filter service life.Maintain both F5 and F7 stages and monitor pressure before the H14 filter.

Available Options

Choose 316 stainless exterior, horizontal or vertical flow, auxiliary sockets, curtain arrangement and pressure alarm. Worktable and caster specifications can follow the task.

Planning a Mobile Laminar Flow Workstation 710 × 725 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
