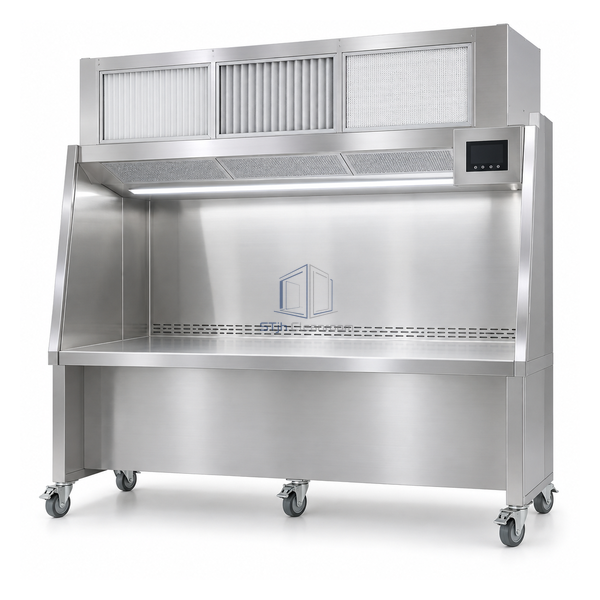

STjh wide 1320 mm mobile laminar workstation with segmented H14 ceiling, LED light and six locking casters

STJH-MOBILE-LAMINAR-WORKSTATION-1320X725

Mobile Laminar Flow Workstation 1320 × 725 mm Wide

The widest published mobile workstation for large apparatus, packaging support and two-handed clean material operations.

1320 mm clear work width
Over 500 lux LED lighting
67 ±2 dBA cited noise

Request a Quote Browse Products

Product Introduction

A 1320 x 725 x 1830 mm internal zone gives this model the broadest working face in the published row. It combines F5 and F7 prefilters with an H14 minipleat HEPA final filter, more than 500 lux of LED task lighting and a cited noise level of 67 ±2 dBA. The wide caster chassis supports large loads while remaining relocatable.

Key Features

Wide handling access

The 1320 mm opening provides room for large apparatus and two-handed container operations.

Illuminated critical zone

LED lighting above 500 lux supports visual inspection and accurate material handling.

Mobile clean construction

A stainless enclosure on lockable casters creates a robust temporary work zone.

Technical Parameters

Internal Dimensions	1320 W x 725 D x 1830 H mm
External Dimensions	1370 W x 1350 D x 2200 H mm
Air Velocity	90 fpm ±20%
Prefilters	F5 and F7
Final Filter	H14 minipleat HEPA
Lighting	>500 lux LED
Noise Level	67 ±2 dBA
Mobility	Lockable caster chassis
Power Supply	220-240 V, 50 Hz
Customization	Available based on the intended application and operating environment.

Applications

For wide clean handling, packaging support and equipment service where a movable protected zone is required. Allow safe clearance around the 1370 mm body and measure sound at the intended operating point.

Solutions for Your Application

Large apparatus cannot be positioned through the narrower mobile units.Use the 1320 mm internal width and verify the complete load envelope.

Detailed inspection is difficult under general room lighting.Use the integrated LED system providing more than 500 lux at the work zone.

Available Options

Configure airflow direction, 316 stainless, pressure alarm, sockets, curtains and worktable. Higher-capacity casters can be chosen for heavy process equipment.

Planning a Mobile Laminar Flow Workstation 1320 × 725 mm Wide specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
