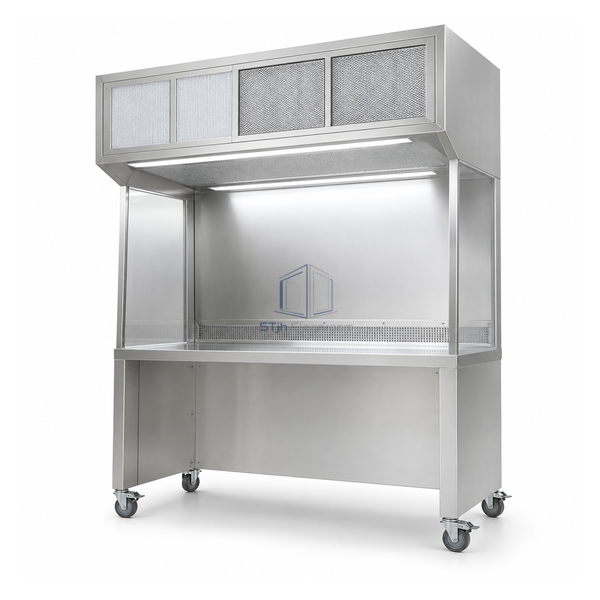

Mobile Laminar Flow Workstation 1015 × 725 mm

A medium mobile workstation for powder dispensing, sample preparation and temporary clean maintenance support.

1015 mm medium work width
1650 mm external depth
H14 minipleat HEPA final stage

Request a Quote Browse Products

Product Introduction

The 1015 x 725 x 1830 mm internal zone gives this model more lateral handling space than the 710 mm unit. Its 1065 x 1650 x 2200 mm exterior accommodates the fan and three-stage F5, F7 and H14 filtration system. The longer body supports medium process layouts but requires additional turning and parking clearance.

Key Features

Medium process capacity

The wider opening supports a balance, containers and hand-clearance for routine preparation.

Protected filter train

Two prefilter stages reduce larger particulate loading before the H14 final filter.

Mobile contained workspace

Locking casters allow the station to support different rooms or temporary maintenance points.

Technical Parameters

Internal Dimensions	1015 W x 725 D x 1830 H mm
External Dimensions	1065 W x 1650 D x 2200 H mm
Air Velocity	90 fpm ±20%
Prefilters	F5 and F7
Final Filter	H14 minipleat HEPA
Exterior Material	304 stainless steel
Side Panels	Insulated 304 stainless steel
Mobility	Lockable caster chassis
Power Supply	220-240 V, 50 Hz
Customization	Available based on the intended application and operating environment.

Applications

For medium powder-dispensing, sample-preparation and clean maintenance tasks that must move between rooms. The selected airflow mode must match whether the task needs product protection or source capture.

Solutions for Your Application

The narrow model lacks space for a balance and both source and receiving containers.Use the 1015 mm work width to separate the weighing steps.

The longer body is difficult to maneuver around corners.Check the 1650 mm depth and turning envelope along every planned route.

Available Options

Select stainless grade, reverse or conventional airflow, digital pressure alarm, LED lighting, sockets and worktable. Curtains and caster capacity can match the process.

Planning a Mobile Laminar Flow Workstation 1015 × 725 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
