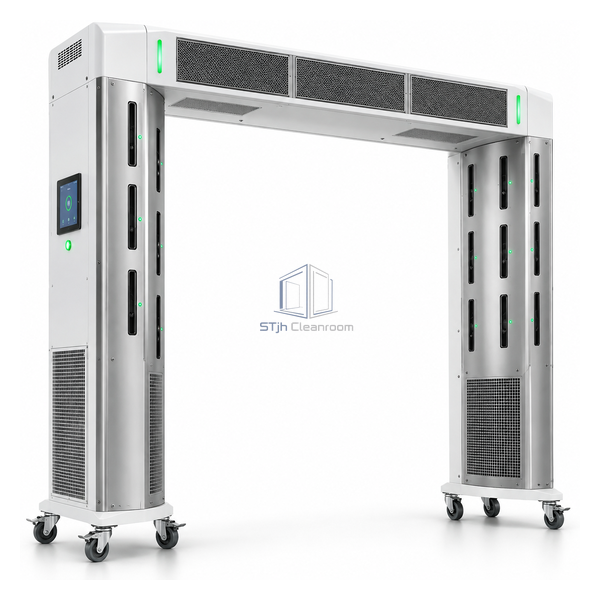

STjh wide mobile ionizing blow-off portal with a broad cart opening, large side towers and six casters

STJH-MOBILE-IONIZING-BLOW-OFF-PORTAL-WIDE

Mobile Ionizing Blow-Off Portal Wide

A wide movable ionizing portal that adds clearance for larger users, carts and incoming materials.

Wide open passage
Continuous doorless processing
Personnel and material cleaning

Request a Quote Browse Products

Product Introduction

The wide version expands the open passage while retaining the movable, doorless operating principle. Ionized blow-off, dust collection and shield airflow support continuous personnel or material movement without fixed airlock construction. It is selected when the standard frame restricts shoulder clearance, PPE or compatible cart passage, not simply for higher airflow.

Key Features

Additional lateral clearance

The wider frame accommodates bulky PPE, broader users or compatible clean carts without contact at the portal edges.

Mixed personnel and material use

The open path permits appropriate incoming items to receive the same ionized blow-off process.

Reconfigurable high-throughput route

Movable construction supports production changes while avoiding doors that interrupt traffic.

Technical Parameters

Portal Format	Wide doorless frame
Mounting	Movable floor-standing unit
Cleaning Medium	Ionized air
Process Flow	Continuous pass-through
Supported Loads	Personnel and compatible incoming materials
Dust Control	Integrated collection with shield airflow
Coverage Zone	Full body from head to soles
Installation	Self-assembled without permanent construction
Selection Basis	Extra clear width for PPE, carts or traffic
Customization	Available based on the intended application and operating environment.

Applications

For busy clean work cells, medical or hygiene routes and electronics production where wider PPE or small carts pass through the same entrance. Confirm that the intended load remains within the ionized air coverage and collection envelope.

Solutions for Your Application

A standard-width portal risks contact with garments, PPE or cart handles.Choose the wide frame and verify the maximum moving envelope with operating clearance on both sides.

A wider opening may be more exposed to room cross-currents.Position the portal away from competing supply jets and verify shield-air capture under actual traffic conditions.

Available Options

Specify clear opening, mobility hardware, electrical interface, ionizer diagnostics and collection access. Confirm whether personnel, materials or both define the required wide passage.

Planning a Mobile Ionizing Blow-Off Portal Wide specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
