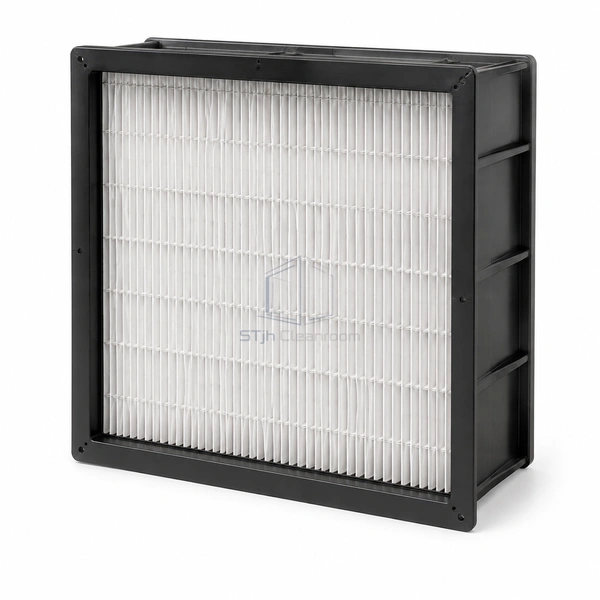

Mini-Pleat Medium-Efficiency Filter 592 × 592 mm ePM1

A full-square V-pack cassette delivering the greatest airflow capacity in this ePM1 mini-pleat size family.

592 × 592 mm full module
4250 m3/h nominal flow
Hydrophobic ePM1 mini-pleats

Request a Quote Browse Products

Product Introduction

This full-module filter uses the complete 592 × 592 mm face and a 292 mm cassette depth to deliver 4250 m3/h. Hydrophobic microglass mini-pleats are arranged in rigid V packs for ISO ePM1 65% filtration, with a published initial pressure drop of 150 Pa. It is the preferred family size where maximum flow per standard full-module bank opening is needed.

Key Features

Maximum family throughput

The square full-module face carries more air than the 287 mm and 490 mm widths at the same efficiency.

Rigid full-depth cassette

The 292 mm housing protects multiple mini-pleat packs during handling and fan cycling.

Moisture-resistant fine medium

Hydrophobic microglass supports ePM1 particle control in normal ventilation humidity.

Technical Parameters

Overall Dimensions	592 × 592 × 292 mm
Efficiency Class	ISO ePM1 65%
Nominal Airflow	4250 m3/h
Initial Pressure Drop	150 Pa
Filter Media	Hydrophobic microglass
Media Pack	Separator-free mini-pleat construction
Pack Configuration	Rigid V-shaped arrangement
Module Size	Full 592 mm square module
Cassette Depth	292 mm
Customization	Available based on the intended application and operating environment.

Applications

Specified for full-size filter banks in pharmaceutical, electronics and precision manufacturing AHUs. It provides high-volume ePM1 intermediate filtration for clean supply and recirculation air before HEPA terminal devices.

Solutions for Your Application

A bank needs maximum airflow through each standard square opening.The 592 mm full module is rated for 4250 m3/h, the highest capacity in this three-width group.

Dense media must remain stable during transport and airflow cycling.The protected V-pack cassette holds the mini-pleat elements in a fixed full-depth geometry.

Available Options

Choose header form, face gasket, installation direction and replacement pressure limit for the full-module housing.

Planning a Mini-Pleat Medium-Efficiency Filter 592 × 592 mm ePM1 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
