STJH-MINI-PLEAT-HEPA-H14-70

Mini-Pleat HEPA Filter 70 mm H14

A mid-depth H14 terminal panel balancing slim ceiling integration with increased mini-pleat media area.

70 mm intermediate pack
H14 terminal efficiency
Microglass hot-melt mini-pleats

Request a Quote Browse Products

Product Introduction

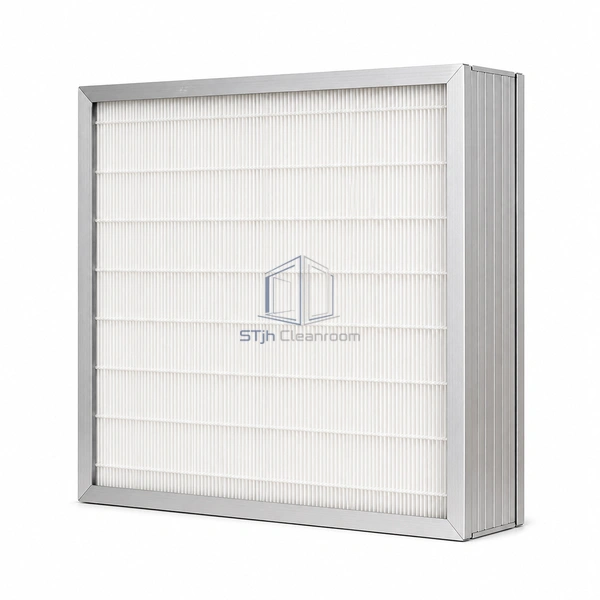

This 70 mm panel increases pack depth over the H13 slim model and upgrades efficiency to H14. Microfine glass fiber is mini-pleated with hot-melt separation inside an anodized aluminum frame rated for temperatures up to 71 °C. The intermediate depth is intended for pharmaceutical and hospital ceilings that require H14 final filtration but still value a relatively slim terminal profile.

Key Features

H14 ceiling filtration

The higher classification supports terminal supply in more demanding controlled environments than the H13 shallow model.

Balanced media depth

Seventy millimeters adds filtration area while remaining slimmer than the 100 mm high-capacity panel.

Separator-free flow paths

Hot-melt beads maintain consistent pleat spacing without aluminum separators inside the medium.

Technical Parameters

Mini-Pleat Pack Depth	70 mm
Filter Class	H14
Media Composition	Microfine glass fiber
Pleat Spacer	Hot-melt adhesive beads
Perimeter Frame	Anodized aluminum
Temperature Limit	71 °C
Panel Construction	Separator-free terminal HEPA
Depth Position	Intermediate in the 53/70/100 mm family
Recommended Use	Pharmaceutical or healthcare ceiling supply
Customization	Available based on the intended application and operating environment.

Applications

Designed for pharmaceutical production rooms, hospital clean areas and controlled laboratory ceilings requiring an H14 terminal panel. It fits installations with more plenum allowance than a 53 mm filter but less depth than a high-capacity 100 mm pack.

Solutions for Your Application

The project needs H14 filtration without using the deepest available panel.The 70 mm model provides an intermediate pack depth and H14 classification.

Improper perimeter compression creates bypass around a high-efficiency filter.Match the frame and seal interface to the terminal housing and apply uniform specified clamping.

Available Options

Select finished face dimensions, gasket or fluid-seal edge, protective grids and compatible terminal frame profile.

Planning a Mini-Pleat HEPA Filter 70 mm H14 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
