STJH-MINI-PLEAT-HEPA-H13-53

Mini-Pleat HEPA Filter 53 mm H13

A thin H13 mini-pleat panel for laminar-flow benches and ceiling modules with minimal plenum depth.

53 mm thin media pack
H13 mini-pleat filtration
Anodized aluminum frame

Request a Quote Browse Products

Product Introduction

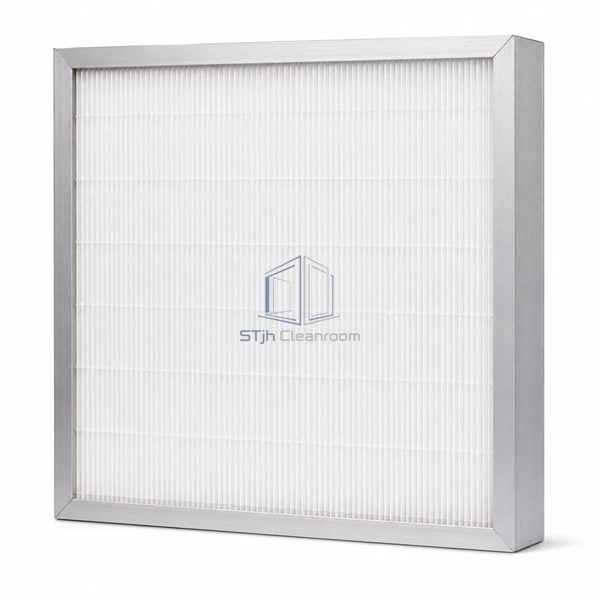

This H13 cleanroom panel uses microfine glass-fiber media formed into separator-free mini-pleats with hot-melt spacing. Its 53 mm pack sits in an anodized aluminum frame and is suitable for operating temperatures up to 71 °C. The shallowest member of this mini-pleat family is designed for low-profile terminal modules and laminar-flow equipment where depth is the primary constraint.

Key Features

Low-profile terminal fit

The 53 mm pack preserves plenum and service clearance above compact clean-air devices.

Hot-melt pleat spacing

Separator-free beads maintain uniform microglass pleat channels without corrugated metal dividers.

Light cleanroom frame

Anodized aluminum provides a clean, corrosion-resistant perimeter for ceiling and bench installation.

Technical Parameters

Pack Depth	53 mm
Efficiency Class	H13
Filter Medium	Microfine glass fiber
Pleat Separation	Hot-melt beads
Frame Material	Anodized aluminum
Maximum Temperature	71 °C
Filter Geometry	Separator-free mini-pleat panel
Installation Profile	Low-depth terminal or equipment module
Primary Air Pattern	Laminar or unidirectional clean airflow
Customization	Available based on the intended application and operating environment.

Applications

Intended for laminar-flow benches, compact clean workstations and low-profile ceiling terminal modules requiring H13 final filtration. Its shallow depth is beneficial where equipment height is limited, provided the selected airflow remains within the panel's validated operating range.

Solutions for Your Application

A deeper HEPA panel reduces working height or conflicts with ceiling services.The 53 mm mini-pleat pack minimizes the filter projection into the plenum or equipment enclosure.

The exposed shallow pack is vulnerable during handling.Lift the filter by its anodized frame and specify a faceguard where the application presents contact risk.

Available Options

Specify face size, gasket or gel interface, faceguard, airflow direction and frame flange required by the terminal housing.

Planning a Mini-Pleat HEPA Filter 53 mm H13 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
