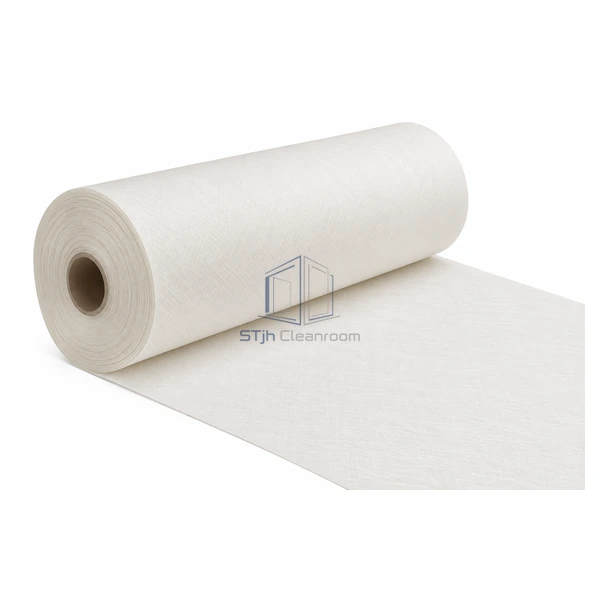

STjh U15 microglass ULPA filter media roll main view

STJH-MICROGLASS-MEDIA-U15

Microglass ULPA Filter Media U15

The highest-density microglass option in this group for U15 terminal filters where glass media is accepted.

U15 efficiency target
High-uniformity microglass
Precision-pleatable roll

Request a Quote Browse Products

Product Introduction

This wet-laid glass-microfiber grade extends the material family into U15 ULPA performance. Its high uniformity supports precision pleating and low local penetration, but the denser structure requires careful media-area and resistance design compared with H13 and H14 sheets. The roll media is only one part of the final performance; pack assembly, sealant and frame integrity must be validated on the complete U15 element.

Key Features

ULPA-grade fiber network

The dense microfiber structure targets the lower penetration required for U15 classification.

Controlled sheet uniformity

Consistent formation reduces weak spots before the media enters precision pleating.

Glass-media compatibility

The sheet supports established sealants and frames where microglass is acceptable to the process.

Technical Parameters

Media Type	Wet-laid glass microfiber
Efficiency Target	U15
Classification Standards	EN 1822 or ISO 29463
Supply Format	Precision-pleatable roll media
Filter Construction	ULPA mini-pleat panel
Primary Property	High sheet uniformity
Resistance Tier	Highest of this H13-H14-U15 microglass group
Handling	Clean, dry and crease-controlled conversion
Final Verification	Complete filter individually tested
Customization	Available based on the intended application and operating environment.

Applications

For microelectronics, precision clean environments and ultra-clean terminal panels where U15 performance and glass-fiber media are compatible with the process.

Solutions for Your Application

U15 microglass creates excessive resistance in a shallow terminal pack.Increase pleated media area, reduce face velocity or use a deeper pack while preserving acceptable pleat spacing.

Brittle sheet damage occurs during high-density pleating.Control roll tension, fold radius and spacer application, then scan the completed filter for local leaks.

Available Options

Confirm media grade, roll dimensions, pack depth, pleat pitch, separator system, resistance target, frame and individual test protocol.
