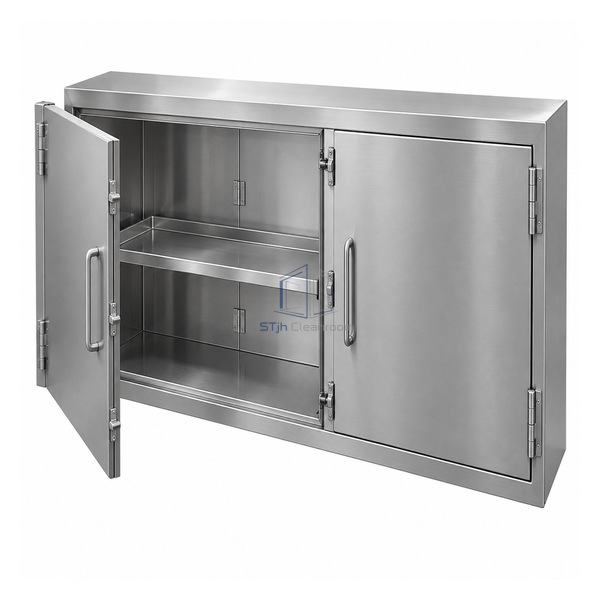

STjh wide shallow 66 by 16 by 36 inch operating-room transfer console with double doors and tray shelf

STJH-MEDICAL-PASS-BOX-OR-CONSOLE-66X16X36

Medical Pass Box 66 × 16 × 36 in Operating-Room Console

A wide, shallow stainless console sized for instrument trays and large surgical supplies at operating-room height.

66 inch wide tray opening
Shallow 16 inch depth
Multipoint-latched double doors

Request a Quote Browse Products

Product Introduction

The 66 inch wide operating-room console provides a broad transfer opening while projecting only 16 inches into the wall zone. Fabricated from 16-gauge 304 stainless steel with a No. 4 brushed finish, it uses double doors and multipoint latching for stable closure along the wide face. The horizontal format is better suited to instrument trays than a compact cubic chamber.

Key Features

Tray-oriented proportions

The wide, low chamber accepts long instrument trays and surgical supply packs without a tall cabinet.

Rigid stainless fabrication

16-gauge material supports the broad door opening and repeated clinical use.

Even door compression

Multipoint latching secures the wide double-door face at more than one location.

Technical Parameters

Overall Dimensions	66 W x 16 D x 36 H in
Body Material	Type 304 stainless steel
Material Gauge	16 gauge
Surface Finish	No. 4 brushed
Door Arrangement	Double-door console
Latching	Multipoint latch
Hardware	Stainless pulls and heavy-duty hinges
Primary Load	Wide instrument trays and surgical supplies
Material Options	316L or electropolished stainless steel
Customization	Available based on the intended application and operating environment.

Applications

For transfer of wide instrument trays, procedure packs and larger supplies into or out of an operating room without personnel crossing the controlled boundary.

Solutions for Your Application

Long surgical trays will not fit through a standard square pass box.Use the 66 inch horizontal opening to accommodate tray length and side-by-side packs.

A wide double door can pull away unevenly at the edges.Use the multipoint latch and heavy-duty hinges to stabilize closure across the face.

Available Options

Specify 304, 316L or electropolished stainless steel, door handing, internal shelving, interlock and wall trim. Chamber depth can be coordinated with the partition build-up.
