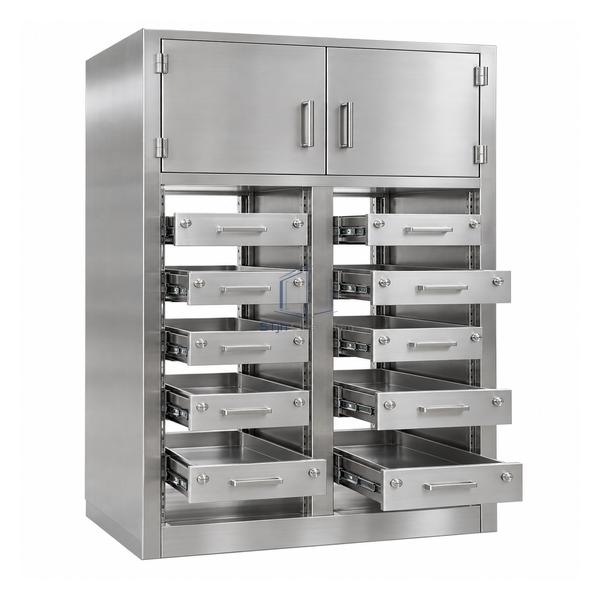

STjh full-height 36 by 30 by 84 inch medical pass-through cabinet with dual columns of two-way drawers

STJH-MEDICAL-PASS-BOX-DRAWER-CABINET-36X30X84

Medical Pass Box 36 × 30 × 84 in Two-Way-Drawer Cabinet

A full-height two-compartment cabinet that organizes repeated instrument-pack transfer through two-way drawers.

84 inch full-height cabinet
Two-way transfer drawers
Two separated compartments

Request a Quote Browse Products

Product Introduction

This 84 inch high medical pass-through replaces a single open chamber with two separate transfer compartments and two-way drawers. Heavy-duty slides support repeated movement of instrument packs, while a divider wall keeps the compartments organized. The 16-gauge 304 stainless body and No. 4 finish suit operating-room support areas requiring durable, cleanable storage and transfer furniture.

Key Features

Organized bidirectional flow

Drawers can be loaded and retrieved from opposite sides without placing every item in one common chamber.

Compartment separation

An internal divider helps segregate loads by destination, status or supply type.

Heavy-duty drawer travel

Robust slides and latches support frequent instrument-pack handling in clinical service.

Technical Parameters

Overall Dimensions	36 W x 30 D x 84 H in
Body Material	Type 304 stainless steel
Material Gauge	16 gauge
Surface Finish	No. 4 brushed
Transfer Mechanism	Two-way drawers
Compartments	Two separated sections
Door Design	Double doors with divider wall
Hardware	Heavy-duty slides, hinges and multipoint latches
Material Options	316 stainless steel or electropolished finish
Customization	Available based on the intended application and operating environment.

Applications

For high-frequency staging and organized transfer of instrument packs, consumables and small equipment during operating-room procedures.

Solutions for Your Application

Loose packs become mixed when many items share one pass-through chamber.Assign the two compartments and individual drawers to separate load categories.

Repeated transfer of loaded drawers wears light-duty hardware quickly.Use heavy-duty slides, hinges and multipoint latches designed for frequent operation.

Available Options

Select stainless grade, electropolished finish, drawer layout, interlock logic, labels and wall closure trim. Drawer loading limits are set for the selected hardware.

Planning a Medical Pass Box 36 × 30 × 84 in Two-Way-Drawer Cabinet specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
