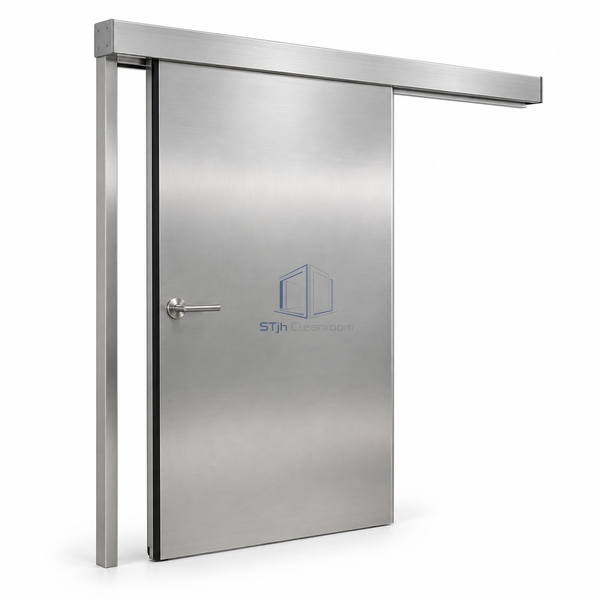

STjh manual stainless medical hermetic door on white with an opaque brushed-metal blade, slim aluminum rail and lever handle.

STJH-MEDICAL-HERMETIC-SLIDING-DOOR-MANUAL-STAINLESS

Medical Hermetic Sliding Door Manual Stainless Steel

A manually operated stainless medical sliding door with an anodized frame and compressed EPDM sealing.

An opaque stainless surface provides visual separation.
A lever-assisted manual action releases the sealed blade.
Anodized rail components accompany the exposed metal finish.

Request a Quote Browse Products

Product Introduction

The stainless finish provides an exposed metal surface on this manual medical door. An anodized aluminum wall frame and rail carry the blade, with self-lubricating rollers supporting its travel. Near closure, the inclined rail detail moves the leaf inward and downward so the replaceable EPDM gasket contacts the frame. A solid stainless lever with a spring arrangement assists opening. The selected opaque configuration keeps the door face free from glazing joints.

Key Features

An opaque stainless surface provides visual separation.
A lever-assisted manual action releases the sealed blade.
Anodized rail components accompany the exposed metal finish.

Technical Parameters

Door Action	Manual single slide
Selected Surface	Stainless steel
Selected Leaf Format	Opaque
Wall Frame Alloy	6063-T6 aluminum
Frame Finish	Natural anodized, 20 µm
Gasket	Replaceable all-round EPDM
Handle	Solid AISI 304 stainless steel lever with rubber spring system
Rail Material	Natural anodized aluminum
Running Rollers	Self-lubricating polyamide
Customization	Available for the intended stainless-finished medical entrance.

Applications

Hospital support rooms specified with stainless door faces.
Medical preparation entrances requiring opaque manual separation.

Solutions for Your Application

Can an opaque medical slider retain a stainless external finish?

This version selects stainless facing and omits the optional observation panel.

How is the blade released from the compressed gasket?

The lever and inclined rail geometry assist movement away from the sealed position.

Available Options

Mechanical lock configuration.
Manual handle positioning.

Planning a Medical Hermetic Sliding Door Manual Stainless Steel specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
