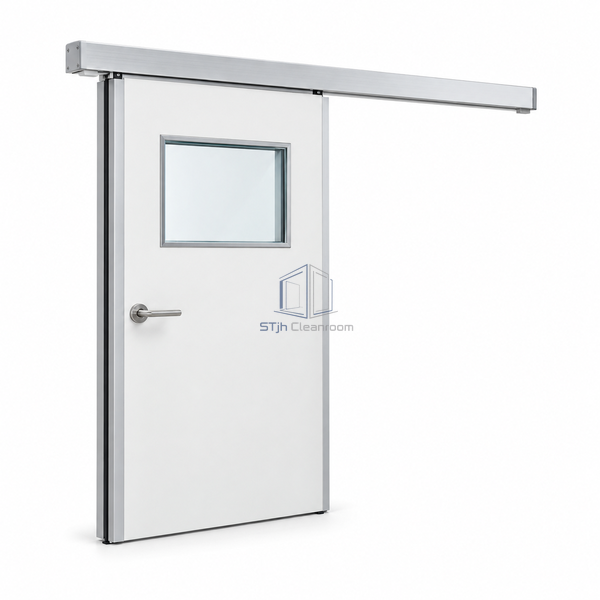

STjh manual HPL medical hermetic door on white with a pale laminate face, rectangular observation panel and stainless lever handle.

STJH-MEDICAL-HERMETIC-SLIDING-DOOR-MANUAL-HPL

Medical Hermetic Sliding Door Manual HPL

A manual HPL medical slider with a 60 mm PIR blade and replaceable EPDM perimeter gasket.

A replaceable perimeter gasket supports routine seal maintenance.
A viewing panel assists observation before manual opening.
The PIR sandwich separates the two finished laminate faces.

Request a Quote Browse Products

Product Introduction

A PIR-filled blade carries HPL on both faces within flush aluminum edge profiles. The manual door runs on an anodized aluminum rail with inclined closing details that move the leaf down and inward against its gasket. A stainless lever handle assists operation, and self-lubricating polyamide rollers carry the sliding motion. The selected double-glazed observation panel allows staff to check the approach while retaining the surrounding opaque laminate surface.

Key Features

A replaceable perimeter gasket supports routine seal maintenance.
A viewing panel assists observation before manual opening.
The PIR sandwich separates the two finished laminate faces.

Technical Parameters

Operation	Manual single sliding door
Leaf Thickness	60 mm
Core Material	PIR foam
Facing	HPL on both sides
Edge Profile	6063-T6 anodized aluminum
Sealing	All-round EPDM gasket
Rail Geometry	45° closing indentations for down-and-in movement
Rollers	Self-lubricating polyamide
Selected Vision Glazing	Double-glazed unit with two 5 mm tempered panes
Customization	Available for the intended medical room access and observation needs.

Applications

Medical treatment-room entrances using manual operation.
Clean healthcare support rooms requiring observation glazing.

Solutions for Your Application

Will gasket wear require replacement of the door blade?

The EPDM perimeter gasket is designed as a replaceable component.

Can staff see through a laminate-faced door before opening it?

The selected double-glazed panel provides a sightline through the otherwise opaque blade.

Available Options

Lever-handle arrangement for the access direction.
Mechanical locking system.

Planning a Medical Hermetic Sliding Door Manual HPL specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
