Staff need to check for someone approaching without a large transparent panel.
The 400 mm square window provides a localized sightline.
STJH-MEDICAL-HERMETIC-AUTOMATIC-DOOR-VISION-400X400

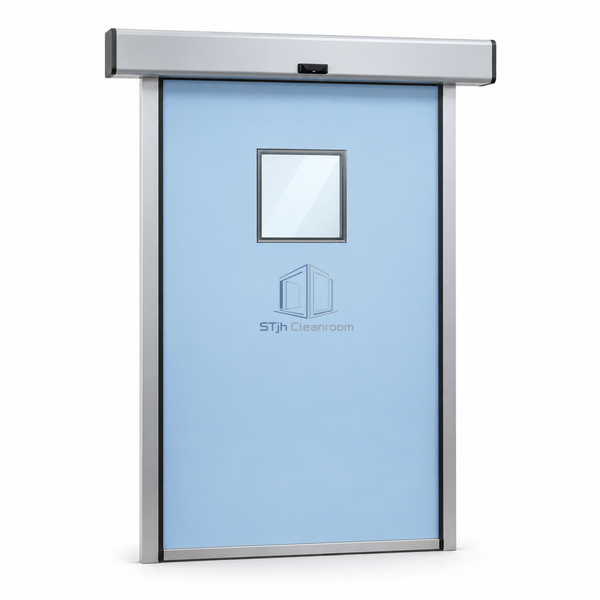

Medical Hermetic Automatic Door with 400 x 400 mm Vision Panel
An automatic hermetic sliding door with a compact 400 × 400 mm square observation window.
- Compact square glazing provides a focused check of the opposite side.
- Sideways travel avoids a hinged leaf projecting into the passage.
- Continuous perimeter sealing follows the frame and floor contact line.
Product Introduction
The small square window gives staff a focused view through this medical sliding door while retaining a broad opaque leaf surface. A 60 mm leaf closes against a continuous EPDM profile at the frame and floor. The powered sliding arrangement moves alongside the opening, and the smooth finish supports routine cleaning of the exposed faces. This configuration suits medical entrances where a limited sightline is useful without making a large part of the door transparent.
Key Features
- Compact square glazing provides a focused check of the opposite side.
- Sideways travel avoids a hinged leaf projecting into the passage.
- Continuous perimeter sealing follows the frame and floor contact line.
Technical Parameters
| Door Motion | Automatic sliding |
|---|---|
| Vision Panel | 400 × 400 mm |
| Leaf Thickness | 60 mm |
| Seal Material | EPDM |
| Seal Arrangement | Continuous profile sealing to frame and floor |
| Surface Finish | Smooth |
| Inside Frame Width | 800–2,100 mm |
| Inside Frame Height | 2,100–2,700 mm |
| Window Format | Square observation panel |
| Customization | Opening dimensions, finish and activation controls can suit the intended medical environment. |
Applications
- Medical preparation rooms needing a compact observation point.
- Pharmacy entrances with automatic access and limited glazing.
Solutions for Your Application
A swing leaf takes space beside a trolley route.
The door travels parallel to the opening instead of sweeping across the approach.
Available Options
- Contactless activation controls.
- Window privacy blind.
- Surface finish selection.
Planning a Medical Hermetic Automatic Door with 400 x 400 mm Vision Panel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
