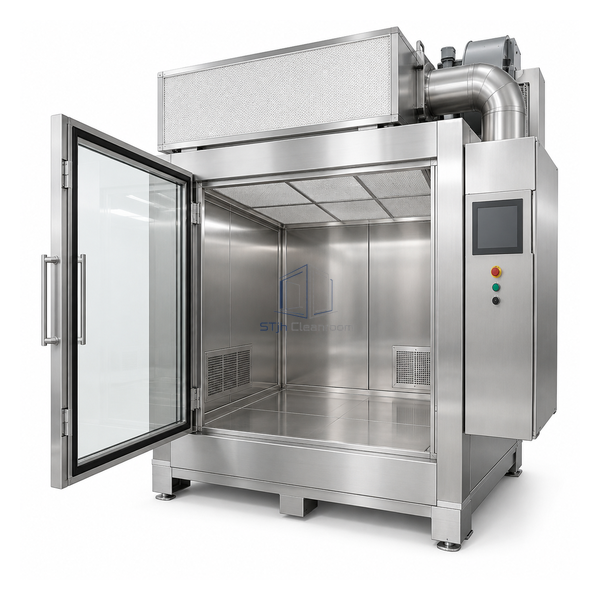

STjh large 800 mm active material airlock with broad stainless chamber, own-blower H14 housing and heavy base

STJH-MATERIAL-AIRLOCK-800-ACTIVE

Active Cleanroom Material Airlock 800 mm

The largest published active material-lock size for bulky containers, tooling and clean production loads.

800 mm cubic load space
1000 x 875 x 1300 mm enclosure
Autonomous H14 filtered airflow

Request a Quote Browse Products

Product Introduction

An 800 mm cubic chamber gives this model the highest load capacity in the standard active series. The 1000 x 875 x 1300 mm stainless body contains an H14 HEPA filter and dedicated blower that establish vertical low-turbulence displacement flow without a central duct branch. It is intended for bulky closed containers and tooling that require more airflow clearance than the 500 or 600 mm chambers provide.

Key Features

Large-load geometry

The 800 mm interior accepts bulky containers and assembled tooling while preserving space around the load.

Independent displacement flow

An onboard blower supplies filtered vertical air without relying on a connection to the room ventilation system.

Cleanable structural package

The V2A stainless housing is supplied with a base and wall installation frame for an integrated transfer opening.

Technical Parameters

Internal Dimensions	800 W x 800 D x 800 H mm
External Dimensions	1000 W x 875 D x 1300 H mm
Housing Material	V2A stainless steel 1.4301
Final Filter	H14 HEPA
Airflow	Vertical low-turbulence displacement flow
Blower	Integral autonomous fan
Door Control	Interlocked one-door-at-a-time sequence
Installation	Wall-integrated with base and frame
Typical Load	Bulky containers and production tooling
Customization	Available based on the intended application and operating environment.

Applications

For large closed totes, prepared production assemblies and bulky clean tooling transferred between pharmaceutical, biotechnology or medical-device rooms. Review load mass, operator reach and air-path blockage before finalizing the chamber.

Solutions for Your Application

Large tooling leaves too little circulation clearance in a 600 mm chamber.Use the 800 mm cube and keep an open perimeter around the load for displacement airflow.

A heavy transfer load is difficult to lift through a raised opening.Select the trolley arrangement or an aligned internal roller surface matched to the room-side cart height.

Available Options

Choose corner-positioned doors, trolley configuration, horizontal airflow, emergency stop, wall console and control indicators. Individual dimensions and internal load supports are available for specific containers.

Planning a Active Cleanroom Material Airlock 800 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
