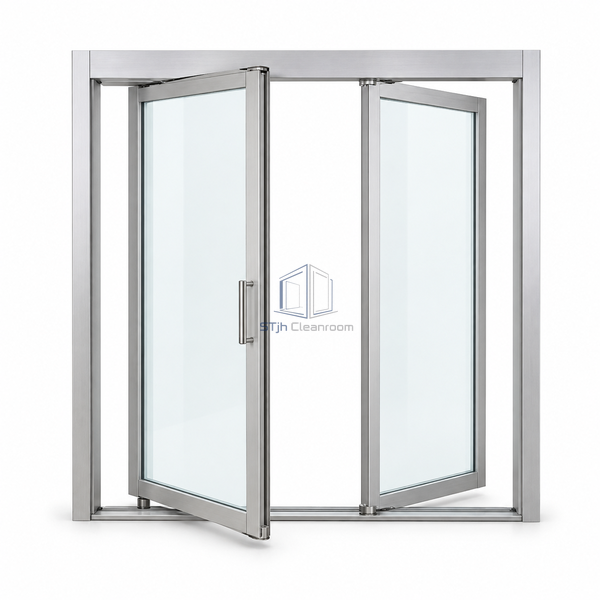

STjh pin-guide manual breakout door on white with a visible floor track and glazed panels partly pivoted from the sliding frame.

STJH-MANUAL-CLEANROOM-SLIDING-DOOR-PIN-GUIDE-BREAKOUT

Manual Cleanroom Sliding Door Pin-Guide Full-Breakout

A pin-guided manual slider whose active panel and sidelite can break out during sliding travel.

Breakout is available without first completing the slide travel.
Both the moving blade and sidelite participate in the breakout opening.
A visible guide track defines the floor interface.

Request a Quote Browse Products

Product Introduction

A continuous pin-guide track distinguishes this manual door from the trackless arrangement. The active glazed leaf slides beside its sidelite during ordinary use, while both sections have breakout hardware for a wider temporary passage. The guided configuration permits breakout from any position along the sliding travel. Framed glazing keeps the approach visible, and the overhead header carries the sliding system for use at healthcare and clean facility support entrances.

Key Features

Breakout is available without first completing the slide travel.
Both the moving blade and sidelite participate in the breakout opening.
A visible guide track defines the floor interface.

Technical Parameters

Routine Movement	Manual sliding
Breakout Scope	Active leaf and sidelite
Breakout Availability	Any position during slide travel
Bottom Guide	Pin-guide floor track
Selected Panel Layout	One active leaf and one sidelite
Alternative Package Layout	Four-panel bi-parting arrangement
Panel Infill	Glazing
Upper Support	Sliding header assembly
Breakout Direction	Inward or outward configuration
Customization	Available for the intended support-area passage and breakout direction.

Applications

Healthcare passages needing an enlarged temporary opening.
Clean facility support rooms used for wheeled equipment transfer.

Solutions for Your Application

Must staff finish sliding before releasing the full opening?

The pin-guide system permits the sidelite and active panel to break out throughout the slide travel.

Will the floor arrangement be the same as a trackless door?

This version includes a floor guide track, which must be considered in the transport route.

Available Options

Positive latching hardware.
Perimeter seals and closing damping.
