STJH-LOW-RESISTANCE-HEPA-H14-610

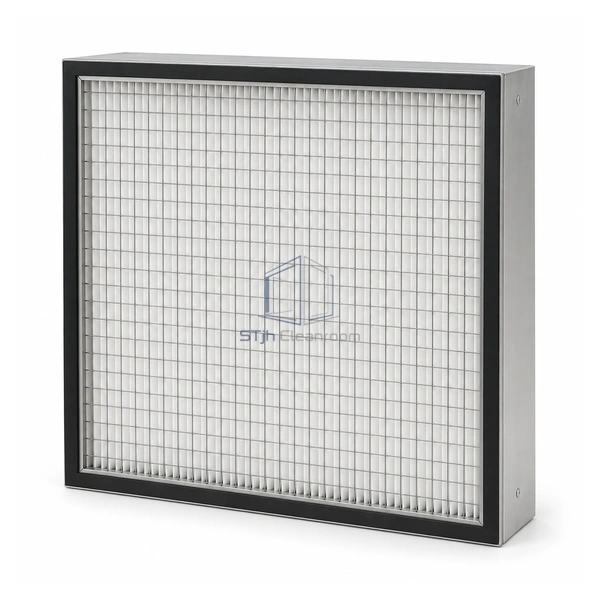

Low-Resistance HEPA Filter 610 mm H14 ePTFE

A full-module H14 ePTFE panel selected for lower average pressure drop and greater handling resilience.

Full 610 mm module
Hydrophobic ePTFE media
Low-resistance gasket format

Request a Quote Browse Products

Product Introduction

This approximately 610 x 610 mm H14 panel uses a supported hydrophobic ePTFE membrane rather than conventional fragile glass fiber. The membrane construction is intended to reduce average resistance and tolerate careful installation handling more robustly, while a perimeter gasket fits a clamped terminal grid. It is a dry-seal energy-focused choice and should not be substituted into gel or knife-edge receivers.

Key Features

Reduced fan-energy demand

The membrane pack is selected to maintain H14 performance with a lower average pressure burden than standard media options.

Handling resilience

Supported ePTFE has higher tensile strength and is less vulnerable to incidental contact during controlled installation.

Dry terminal seal

A continuous face gasket suits clamped grids where no gel receiver is present.

Technical Parameters

Approximate Face Size	610 x 610 mm
Efficiency Class	H14 / at least 99.995% at MPPS
Media Technology	Supported hydrophobic ePTFE membrane
Frame Material	Anodized aluminum
Seal	Continuous face gasket
Resistance Characteristic	Low average pressure-drop design
Media Strength	Higher tensile strength than conventional fragile media
Test-Aerosol Suitability	Compatible with PAO challenge under the selected procedure
Installation	Clamped full-module ceiling or LAF housing
Customization	Available based on the intended application and operating environment.

Applications

Suitable for pharmaceutical production ceilings, life-science cleanrooms and laminar-flow benches where fan energy, continuous operation and handling robustness are important. Select the gasket version only for a flat sealing land with controlled compression.

Solutions for Your Application

The cleanroom fan operates near its pressure limit with conventional H14 panels.The ePTFE pack targets a lower average pressure drop while preserving H14 classification.

Fragile media is damaged during transport from staging area to ceiling grid.The supported membrane offers greater mechanical resilience, although lifting contact must remain on the frame rather than the media.

Available Options

Specify exact face dimensions, gasket material and face, pack depth, grille style and challenge-aerosol procedure for the facility.

Planning a Low-Resistance HEPA Filter 610 mm H14 ePTFE specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
