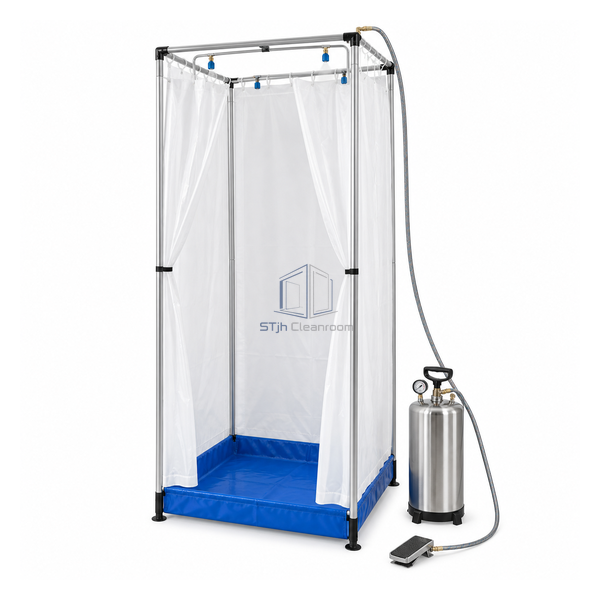

STjh portable suit misting shower with an aluminum frame, washable curtain, blue sump and 15 litre pressure cylinder

STJH-LOW-FLOW-SUIT-WET-DOWN-PORTABLE-15L

Suit Misting Shower 15 L Portable

A packable foot-operated mist booth for temporary PPE wet-down where fixed water services are unavailable.

15 L pressurized cylinder
16.5 kg packed weight
Foot-operated mist release

Request a Quote Browse Products

Product Introduction

This portable system combines a folding aluminium frame, washable polyester enclosure and PVC floor with a pressurized 15 L solution cylinder. The 950 x 950 x 2350 mm assembled booth provides a temporary wet-down point, while the 16.5 kg packed assembly can be moved between shutdown or response zones. Foot activation leaves gloved hands free and meters short mist applications.

Key Features

No plumbed feed required

The onboard cylinder supports deployment away from a permanent water connection.

Packable response format

The frame and cover reduce to a 1600 x 390 x 390 mm transport package.

Hands-free activation

A foot control lets a suited user trigger mist without handling a wall control.

Technical Parameters

Assembled Dimensions	950 W x 950 D x 2350 H mm
Packed Dimensions	1600 x 390 x 390 mm
Solution Capacity	15 L
Supply Pressure	3-6 bar
Estimated Short Cycles	Approximately 700 users at 5 s each
Frame Material	Aluminium
Cover Material	Washable polyester
Floor Material	PVC
Packed Weight	16.5 kg
Customization	Available based on the intended application and operating environment.

Applications

For temporary pharmaceutical maintenance, hazardous-material response and short-duration hygiene stations. Procurement should include a refill plan, spent-liquid containment and a method for cleaning and drying the cover between deployments.

Solutions for Your Application

The work area has no reliable plumbed water connection.Use the 15 L pressurized cylinder and stage a charged spare when uninterrupted operation is required.

A reusable fabric enclosure could retain contamination after use.Remove and wash the polyester cover and PVC floor under the site's decontamination procedure before repacking.

Available Options

Select solution-cylinder quantity, compatible wetting agent, collection liner and storage case. Cycle duration should be set from the PPE contamination risk rather than the nominal user estimate alone.
