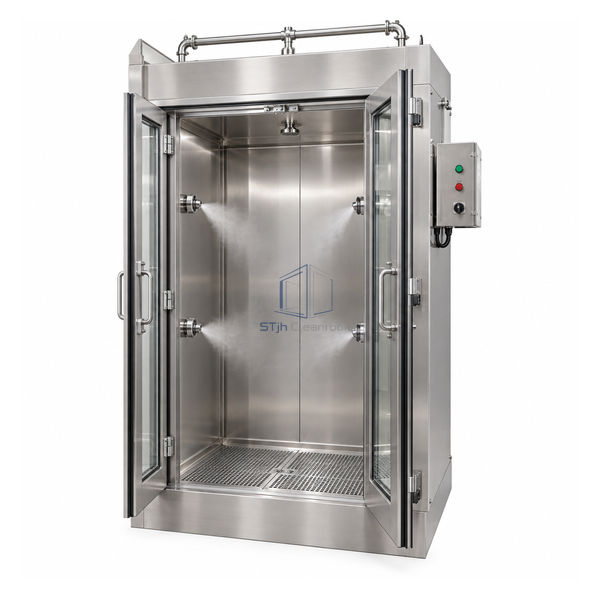

STjh fixed four-nozzle stainless protective-suit wet-down shower with an overhead cleaning manifold and drained floor

STJH-LOW-FLOW-SUIT-WET-DOWN-4NOZZLE-SS

Suit Wet-Down Shower Four-Nozzle Stainless Steel

An automated stainless PPE mist chamber with separate fogging and internal-cleaning water circuits.

Four fogging nozzles
Separate 18 L/min cleaning circuit
IP65 stainless enclosure

Request a Quote Browse Products

Product Introduction

This fixed 1.4301 stainless chamber uses four fogging nozzles to process suited personnel inside a 1160 x 1160 mm work zone. Automated door interlocks control passage, while a separate 18 L/min chamber-cleaning circuit supports washdown between operating campaigns. The 230 V, IP65 package also requires 6 bar clean compressed air, making it the most utility-intensive model in this wet-down family.

Key Features

Repeatable fog distribution

Four positioned nozzles provide controlled coverage around the protected operator.

Independent chamber wash

A higher-flow cleaning circuit removes residue without relying on the low-volume process mist.

Sequenced containment

Automated interlocks and clean-air door blow-off support a defined transition between rooms.

Technical Parameters

Internal Chamber	1160 W x 1160 D x 2100 H mm
Overall Dimensions	1300 W x 1300 D x 2700 H mm
Chamber Material	Brushed stainless steel EN-ISO 1.4301
Fogging Nozzles	4
Fog Circuit Flow	2 L/min source-family duty
Cleaning Circuit Flow	18 L/min
Electrical Supply	230 V AC, 16 A, 50 Hz
Connected Power	Approximately 0.7 kW
Pneumatic Supply	6 bar, oil- and water-free
Customization	Available based on the intended application and operating environment.

Applications

For fixed pharmaceutical, chemical and high-containment personnel locks requiring reproducible PPE wet processing. Reserve access for nozzle inspection and plan both the low-flow process drain and higher-flow chamber wash discharge.

Solutions for Your Application

Residue may remain on chamber walls after repeated mist cycles.Use the dedicated 18 L/min cleaning circuit as part of the validated between-campaign wash procedure.

Poor compressed-air quality could obstruct fine fogging hardware.Provide oil- and water-free air at 6 bar and include nozzle inspection in preventive maintenance.

Available Options

Define door logic, mist chemistry, clean-air blow-off timing, drainage interface and monitoring package. Final materials should follow the cleaning agents used in the room.

Planning a Suit Wet-Down Shower Four-Nozzle Stainless Steel specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
