STJH-LINEAR-SLOT-AIR-DIFFUSER-2S-20X1200

Linear Slot Air Diffuser Two-Slot 20 x 1200 mm

Twin-slot linear terminal for independently directed supply along a ceiling line.

Two independent slots support split discharge patterns.
Wider neck accommodates a medium linear supply arrangement.

Request a Quote Browse Products

Product Introduction

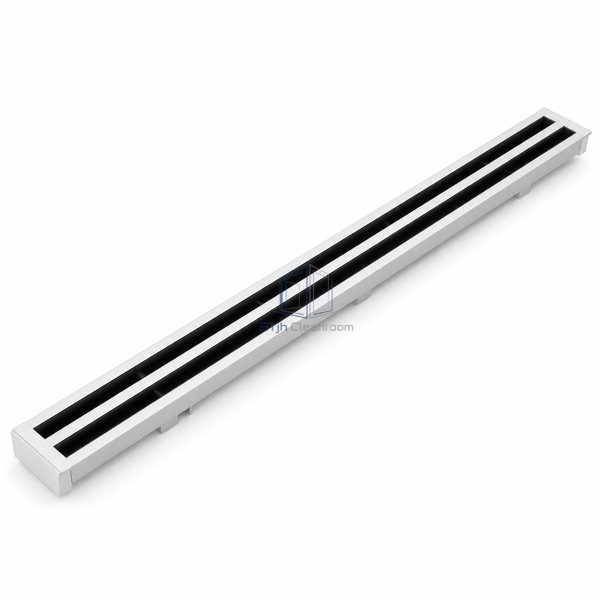

Two 20 mm air slots share the 1200 mm aluminum body. Their separate pattern controls allow the discharge to be split to either side or aimed downward, providing more directional flexibility within one continuous section.

Key Features

Two independent slots support split discharge patterns.
Wider neck accommodates a medium linear supply arrangement.

Technical Parameters

Number of Slots	2
Width per Slot	20 mm
Section Length	1200 mm
Construction	Extruded aluminum
Pattern Control	Independent adjustment per slot
Discharge Options	Horizontal or vertical
Face Finish	White powder-coat option
Air Entry	Optional matched plenum
End Treatment	End caps or joined sections
Customization	Available for the intended bidirectional supply and ceiling layout.

Applications

Medium perimeter supply zones
Bidirectional ceiling air distribution

Solutions for Your Application

A ceiling line needs to serve both sides of the room.

The two slots can be set to opposite horizontal discharge directions.

Available Options

Insulated plenum
Continuous-run alignment pieces

Planning a Linear Slot Air Diffuser Two-Slot 20 x 1200 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
