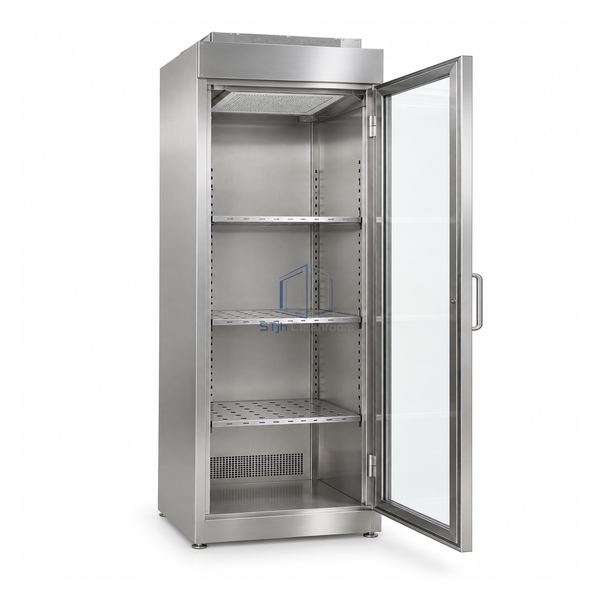

STjh compact 24 inch stainless laminar storage cabinet with ULPA roof unit and three perforated shelves

STJH-LAMINAR-STORAGE-CABINET-24SS-ULPA

Laminar Storage Cabinet 24 in Stainless Steel ULPA

A narrow ULPA-filtered stainless cabinet for organized storage of small optics, semiconductor parts and sterile components.

24.1 in compact square footprint
ULPA-filtered storage
Three adjustable perforated shelves

Request a Quote Browse Products

Product Introduction

This 24.1 x 24.1 x 72 in cabinet concentrates ULPA-filtered storage in a narrow floor footprint. Three adjustable perforated shelves allow air movement around small components, and 304 stainless construction supports routine cleanroom wipe-down. The model is intended for compact inventories that do not need the doubled shelf width of the 48 in cabinet.

Key Features

Narrow clean storage

The 24 in-class footprint fits beside equipment or in restricted cleanroom aisles.

Air-permeable shelving

Perforated shelves let filtered air circulate through all storage levels.

Stainless cleanability

304 stainless surfaces tolerate common controlled-area cleaning routines.

Technical Parameters

External Dimensions	24.1 W x 24.1 D x 72 H in
Cabinet Material	304 stainless steel
Final Filter	ULPA
Airflow	Laminar filtered circulation
Shelf Count	Three
Shelf Type	Adjustable perforated
Footprint	Compact single-bay
Storage Access	Front door
Intended Load	Small clean components
Customization	Available based on the intended application and operating environment.

Applications

For small semiconductor, optical and sterile components awaiting use in a controlled area. Shelf spacing should preserve airflow around sealed containers and prevent overloading the narrow cabinet.

Solutions for Your Application

A wide cabinet blocks a narrow cleanroom aisle.Use the 24.1 in footprint for compact component inventories.

Solid shelves interrupt filtered airflow between levels.Use the three perforated shelves and leave clearance around stored items.

Available Options

Configure door material, shelf spacing, airflow monitor, caster or leveling base and electrical supply. HEPA filtration can be considered when ULPA efficiency is unnecessary.

Planning a Laminar Storage Cabinet 24 in Stainless Steel ULPA specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
