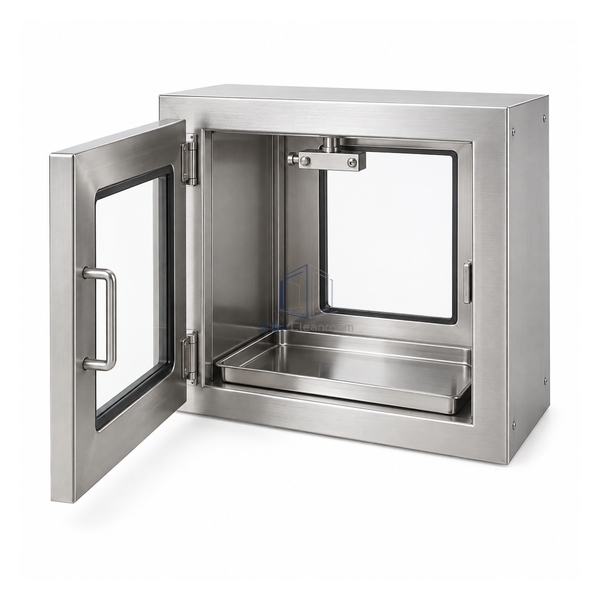

STjh shallow 337 by 324 by 152 mm stainless specimen pass box with two doors and removable drip tray

STJH-LABORATORY-SPECIMEN-PASS-BOX-337X324X152

Laboratory Specimen Pass Box 337 × 324 × 152 mm Shallow

A shallow two-door specimen cabinet for thin healthcare partitions, with spill capture and simple opening control.

152 mm shallow cabinet depth
Internal two-door latch
Removable stainless drip tray

Request a Quote Browse Products

Product Introduction

The 337 x 324 x 152 mm cabinet fits walls where a deep transfer enclosure would project into the patient or laboratory workspace. Its 18-gauge 304 stainless construction includes a removable drip tray for routine spill handling. An internal latch blocks simultaneous opening of the two doors, providing a compact sequential handoff for sealed clinical samples.

Key Features

Thin-wall installation

The shallow body serves partitions from 44 to 140 mm without the depth of a cleanroom tote hatch.

Contained minor spills

A removable tray catches drips from closed specimen containers and can be cleaned separately.

Sequential access

The internal latch prevents both doors from being opened at the same time during a transfer.

Technical Parameters

Overall Dimensions	337 W x 324 H x 152 D mm
Wall Opening	292 W x 279 H mm
Supported Wall Depth	44-140 mm
Construction	18-gauge type 304 stainless steel
Surface Finish	Satin stainless
Door Arrangement	Two opposing hinged doors
Opening Control	Internal anti-simultaneous-opening latch
Spill Control	Removable stainless drip tray
Intended Load	Sealed clinical specimen containers
Customization	Available based on the intended application and operating environment.

Applications

For routine clinical-sample handoff through shallow partitions between toilets, collection rooms and laboratories. The load should remain sealed, and local procedures should define tray removal and disinfection after a spill.

Solutions for Your Application

A deep specimen cabinet projects into a narrow clinical room.Use the 152 mm body and select trim appropriate to the measured partition depth.

Leaking containers contaminate the fixed cabinet floor.Place loads over the removable drip tray and clean the tray separately after the handoff.

Available Options

Confirm wall-depth trim, door handing, lock function and identification labeling. Tray quantity and stainless finish can be adapted to the facility cleaning routine.

Planning a Laboratory Specimen Pass Box 337 × 324 × 152 mm Shallow specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
