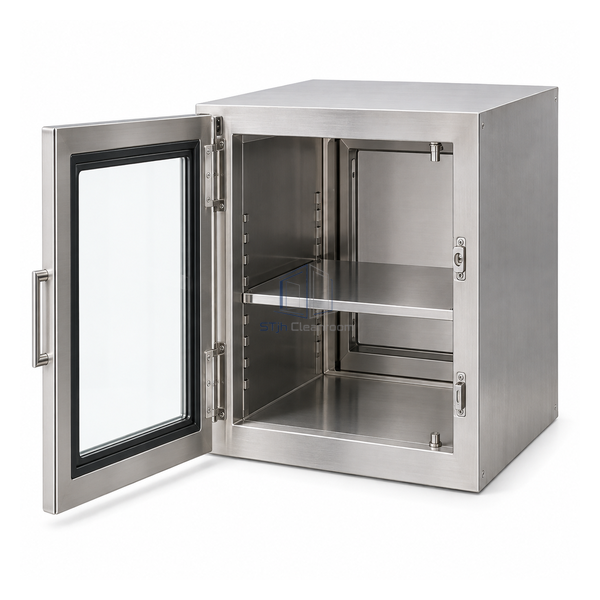

Laboratory Specimen Pass Box 12 × 18 × 15 in Welded

A deeper welded specimen chamber for sample racks and carriers that exceed shallow clinic pass-box capacity.

15 in deep welded chamber
Removable shelf available
304 or 316L stainless selection

Request a Quote Browse Products

Product Introduction

This 12 x 18 x 15 in enclosure provides substantially more depth than a shallow wall cabinet and uses a welded stainless body rather than a rotating cylinder. The chamber can accept larger sealed sample racks or carriers, with a removable shelf available to separate loads. A mechanical interlock and 316L material option adapt the unit to more controlled laboratory transfer routines.

Key Features

Deeper carrier space

The 15 in dimension accommodates sample racks and transport carriers that cannot fit a shallow specimen cabinet.

Welded interior

The stainless enclosure minimizes assembled joints across surfaces used for frequent wipe-down.

Load separation option

A removable shelf can divide small specimens from larger carriers within the chamber.

Technical Parameters

Published Dimensions	12 L x 18 W x 15 H in
Standard Material	304 brushed stainless steel
Optional Material	316L stainless steel
Body Construction	Welded chamber
Door Arrangement	Opposing hinged doors
Interlock Option	Mechanical
Shelf Option	Removable stainless shelf
Surface Finish	Brushed stainless
Intended Load	Specimen racks and sealed sample carriers
Customization	Available based on the intended application and operating environment.

Applications

Suitable for larger clinical specimen racks and sealed sample carriers moving between a collection area and controlled laboratory. The chamber depth should be checked against the partition and the operator reach from both sides.

Solutions for Your Application

Shallow wall cabinets cannot hold a complete sample rack.Use the deeper welded chamber and validate the rack footprint against the 12 x 18 x 15 in envelope.

Different specimen groups should not be stacked together.Add the removable shelf to create separate transfer levels and remove it for tall carriers.

Available Options

Select 304 or 316L stainless steel, mechanical interlock, removable shelf, windows and wall trim. Door handing can follow the collection-to-laboratory direction.
