STJH-INTERNAL-CLEANROOM-COVING-PROFILE-R40

Internal Cleanroom Coving Profile R40 Clip-On Aluminum

Compact R40 clip-on coving for hygienic internal cleanroom junctions.

The smaller internal radius limits the cove projection.
Clip-on facing hides the carrier fixings.
Sealant can finish the two contact edges.

Request a Quote Browse Products

Product Introduction

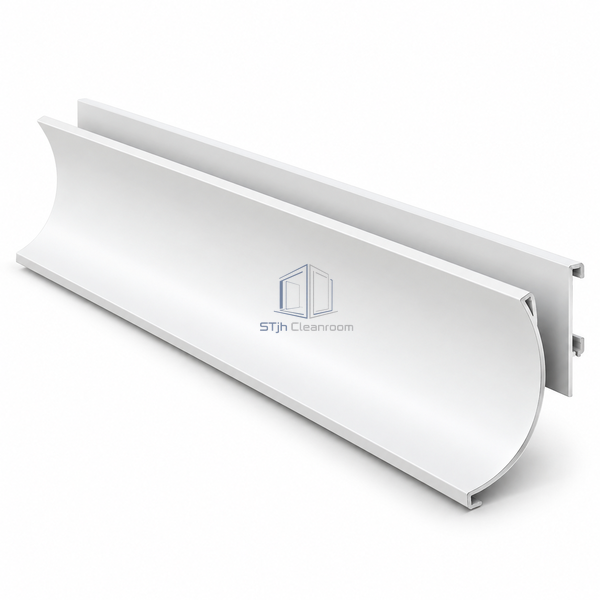

A powder-coated aluminum face clips over a fixed pre-cove carrier. The 40 mm concave radius bridges the inside junction while the mounting member stays behind the face. Long stock sections reduce the number of separate lengths needed along a run.

Key Features

The smaller internal radius limits the cove projection.
Clip-on facing hides the carrier fixings.
Sealant can finish the two contact edges.

Technical Parameters

Internal Radius	40 mm
Standard Length	4000 mm
Facing Material	Aluminum alloy
Surface Finish	Powder coated
Section Curvature	Concave
Carrier	Pre-coving member
Facing Attachment	Clip-on
Edge Seal	Silicone
Junction Position	Internal wall or ceiling corner
Customization	Available for the intended application and operating environment.

Applications

Compact wall-to-ceiling corners
Internal panel junctions with limited projection

Solutions for Your Application

A broad cove would encroach on nearby wall equipment.

The R40 curve provides a compact corner transition.

Exposed fixing heads interrupt the wipeable face.

The clipped face covers the pre-cove mounting points.

Available Options

Matching internal junction pieces
Cut and mitred lengths

Planning a Internal Cleanroom Coving Profile R40 Clip-On Aluminum specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
