STJH-INTERNAL-90-DEGREE-CLEANROOM-CORNER-PROFILE-50-ONEPIECE

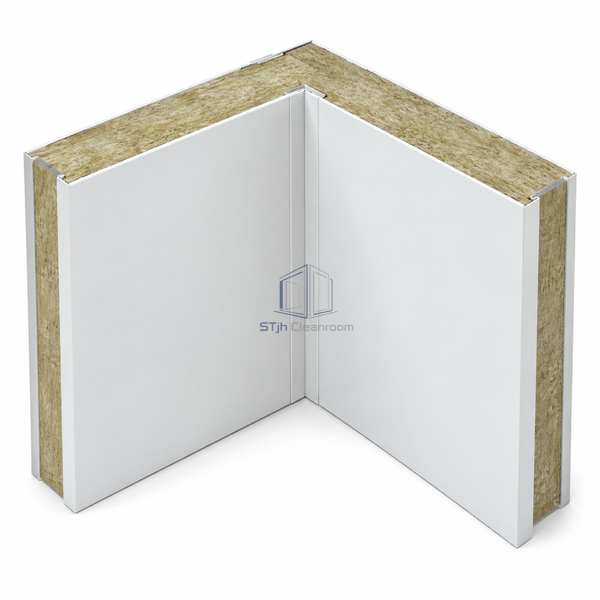

Internal 90-Degree Cleanroom Corner Profile 50 mm One-Piece L-Shaped Module

A 50 mm insulated L-shaped corner module that reduces assembly joints at cleanroom inside corners.

The one-piece L form reduces the corner assembly seam.
Rock wool occupies the insulated section between the faces.
Metal skins provide a continuous finished surface around the turn.

Request a Quote Browse Products

Product Introduction

The prefabricated corner combines a rock-wool infill with metal faces in a continuous L form. Rather than closing two separate flat panel ends at the apex, the module carries the corner shape through the factory-made section.

Key Features

The one-piece L form reduces the corner assembly seam.
Rock wool occupies the insulated section between the faces.
Metal skins provide a continuous finished surface around the turn.

Technical Parameters

Wall Thickness	50 mm
Core Material	Rock wool
Facing Material	Steel
Facing Thickness	0.4–0.6 mm
Maximum Length	6000 mm
Section Shape	L-shaped
Corner Geometry	90-degree internal turn
Manufacturing Form	Prefabricated one-piece module
Surface Option	Color-coated steel
Customization	Available to suit the intended application and operating environment.

Applications

Insulated pharmaceutical room corners
Modular cleanroom internal wall junctions

Solutions for Your Application

Two cut panel ends leave an additional seam at the inside corner.

The prefabricated L module carries the corner as one component.

The corner must retain the wall's insulated section.

Rock-wool infill continues within the 50 mm module.

Available Options

Cut module heights
Compatible steel surface finishes

Planning a Internal 90-Degree Cleanroom Corner Profile 50 mm One-Piece L-Shaped Module specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
