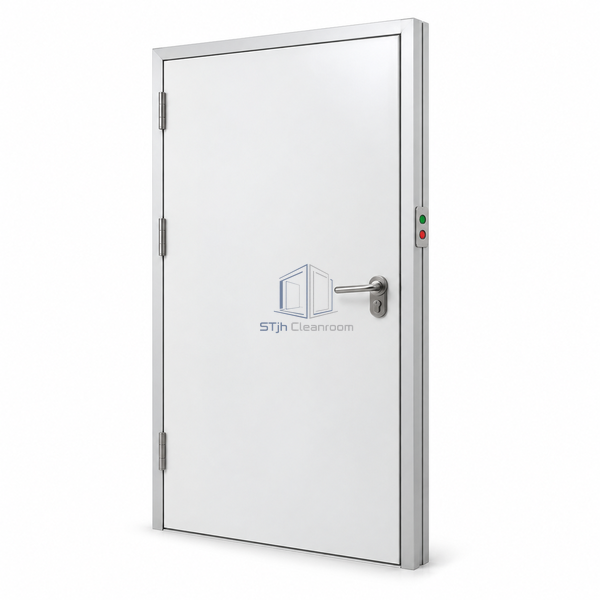

STjh steel swing interlocked cleanroom door with a red-green status indicator and locking hardware on a white background.

STJH-INTERLOCKED-CLEANROOM-DOOR-SWING-STEEL

Interlocked Cleanroom Door Steel Swing with Integrated Interlock

A steel swing doorset with integrated locking and status indication for sequential cleanroom access.

Visible status indication helps users recognize when passage is available.
A single moving leaf keeps the locking interface localized.
The assembly can communicate with a coordinated group of other doors.

Request a Quote Browse Products

Product Introduction

The assembly combines a galvanized-steel-faced hinged leaf with a cleanroom frame and the physical provisions required for door interlocking. A lock, door-position sensing and red/green indication connect the opening to its interlock group. The door remains a complete architectural doorset rather than a controller supplied on its own. Its swing layout suits personnel entries with adequate leaf clearance. When another associated door is open, the interlock controls release of this opening; emergency override must remain accessible within the overall access arrangement.

Key Features

Visible status indication helps users recognize when passage is available.
A single moving leaf keeps the locking interface localized.
The assembly can communicate with a coordinated group of other doors.

Technical Parameters

Door Configuration	Single hinged leaf
Facing Material	Galvanized steel
Frame Form	Hollow-chamber cleanroom profile
Control Function	Sequential door interlocking
Lock Options	Magnetic or electric strike
Status Indication	Red/green LED
Position Input	Door-closed contact
Control Supply	24 V DC interlock hardware
Emergency Function	Manual override provision
Customization	Available for the access sequence and operating environment.

Applications

Sequential staff entry between controlled spaces
Personnel openings connected to an existing interlock group

Solutions for Your Application

Users pull against a door that is intentionally locked.

The status indicator shows when the interlock allows access, reducing uncertainty at the handle.

The project needs a door, not another loose controller.

This model defines the leaf, frame and integrated locking interface; group wiring is coordinated with the installed control system.

Available Options

Magnetic lock or electric strike arrangement
Door contact and emergency release accessories
Building-management interface through the interlock system
