Will a thin flexible curtain provide the specified insulated barrier?
The selected curtain uses a 25.4 mm closed-cell-foam construction protected by outer layers.
STJH-INSULATED-HIGH-SPEED-ROLL-UP-DOOR-25MM-FOAM

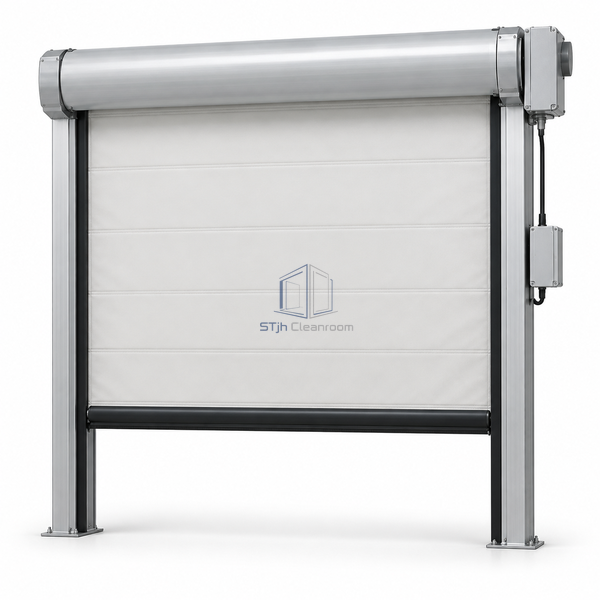

Insulated High-Speed Roll-Up Door 25.4 mm Closed-Cell Foam
A 25.4 mm insulated roll-up curtain with closed-cell foam and multiple side sealing contacts for cold-storage routes.
- Closed-cell insulation sits within a protected flexible curtain.
- Four side sealing contacts address the guide-column interface.
- Wireless bottom-bar communication avoids a hanging coil cord.
Product Introduction
A three-layer insulated curtain combines a durable outer fabric, closed-cell foam and a protective laminated film. The 25.4 mm assembly runs within aluminum side columns fitted with multiple seals and thermal breaks. A counterbalanced drive supports the rolling movement, while the lower bar incorporates a reversing edge and floor sweep. Breakaway tabs allow the panel to release after contact and return through the automatic reset sequence, serving busy conditioned-storage passages.
Key Features
- Closed-cell insulation sits within a protected flexible curtain.
- Four side sealing contacts address the guide-column interface.
- Wireless bottom-bar communication avoids a hanging coil cord.
Technical Parameters
| Curtain Thickness | 25.4 mm |
|---|---|
| Insulating Material | Closed-cell foam |
| Curtain Layers | Outer fabric, foam and laminated protective film |
| Side Columns | Extruded aluminum with thermal breaks |
| Side Sealing | Quad seals |
| Top Seal | Vinyl loop seal |
| Bottom Assembly | Reversing edge with floor sweep |
| Drive Assistance | Counterbalanced straps |
| Impact Recovery | Breakaway panel with automatic reset |
| Customization | Available for the intended cold-storage transition and traffic demands. |
Applications
- Cold-storage support areas serving clean production.
- Food handling routes between conditioned storage zones.
Solutions for Your Application
Will an impact-displaced panel require manual rethreading?
The breakaway arrangement incorporates an automatic reset sequence.
Available Options
- Left- or right-side motor placement.
- Supply transformer option.
Planning a Insulated High-Speed Roll-Up Door 25.4 mm Closed-Cell Foam specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
