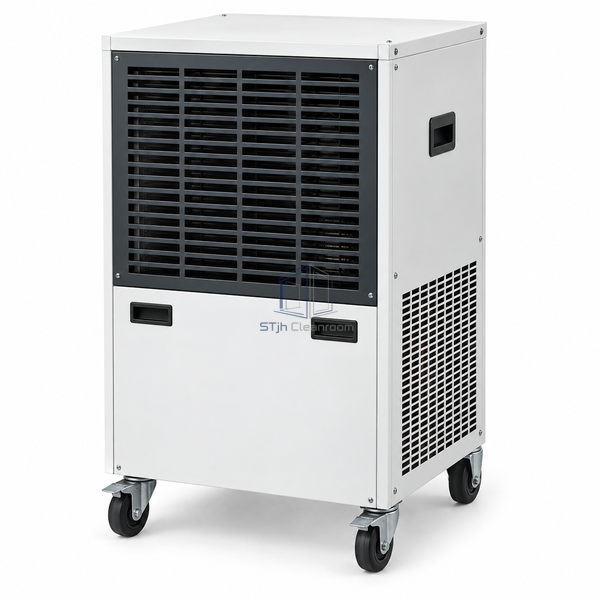

STjh 80 L/day industrial refrigerant dehumidifier with a tall cabinet and large airflow grille on white.

STJH-INDUSTRIAL-REFRIGERANT-DEHUMIDIFIER-80LPD

Industrial Refrigerant Dehumidifier 80 L/day

A large 80 L/day refrigerant dehumidifier moving 1000 m3/h with a 1200 W input and 66 kg tall cabinet.

80 L/day rated capacity
1000 m3/h airflow
1035 mm-high 66 kg cabinet

Request a Quote Browse Products

Product Introduction

The largest selected room unit doubles airflow to 1000 m3/h and removes 80 L/day at the referenced condition. Its 580 x 600 x 1035 mm enclosure, 1200 W power input and 66 kg mass suit substantial moisture loads in industrial clean-support and production rooms.

Key Features

Large-room recirculation

The 1000 m3/h fan processes a greater room volume and improves moisture transport to the cooling coil.

High refrigeration output

A 1200 W circuit provides the largest latent capacity in the selected mobile series.

Tall industrial chassis

The 1035 mm cabinet carries the larger coil, compressor and airflow path required for 80 L/day.

Technical Parameters

Dehumidification	80 L/24h at 30 C and 80% RH
Airflow	1000 m3/h
Power Input	1200 W
Dimensions	580 x 600 x 1035 mm
Net Weight	66 kg
Dehumidification Cycle	Refrigerant cooling and reheat
Fan	High-airflow integral recirculation
Condensate Drain	Continuous connection option
Installation	Large indoor support space
Customization	Drainage, humidistat and remote monitoring can be configured for the intended application and operating environment.

Applications

Large industrial clean-support areas, production rooms, controlled warehouses and spaces with substantial intermittent moisture load.

Solutions for Your Application

A 480 m3/h unit cannot move moisture from the far side of a large room.Use the 1000 m3/h model and position its intake and discharge to establish full-room circulation.

Eighty litres per day can overwhelm a small collection tank.Use a continuous drain or condensate pump with a high-level safety interlock.

Available Options

Continuous drainage, pump kit, humidistat, timer, duct adapters, washable filter, remote alarm and corrosion protection can be selected.

Planning a Industrial Refrigerant Dehumidifier 80 L/day specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
