HVAC Duct Wrap Insulation 56 mm R-6.0

Intermediate duct-wrap thickness for increased thermal resistance.

Intermediate blanket depth supports higher insulation demand.
Flexible roll form handles varying duct perimeters.

Request a Quote Browse Products

Product Introduction

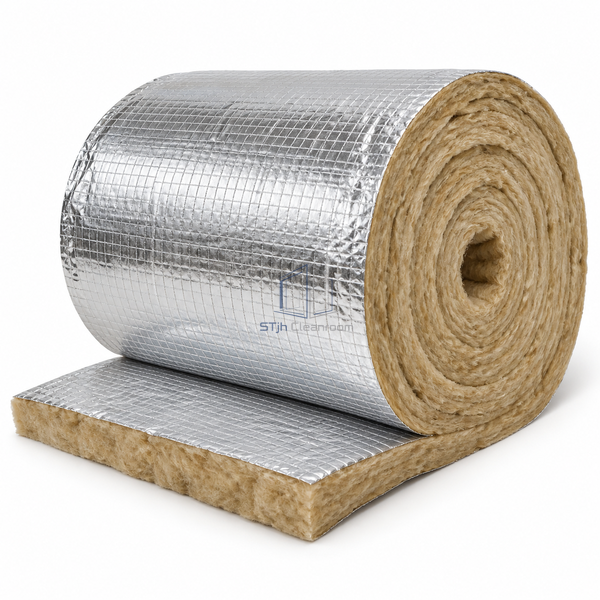

This 56 mm fiberglass blanket adds thermal depth while remaining flexible enough to follow rectangular and round ductwork. Its shorter roll length accommodates the thicker material, and the facing choice can be matched to the desired outer surface.

Key Features

Intermediate blanket depth supports higher insulation demand.
Flexible roll form handles varying duct perimeters.

Technical Parameters

Blanket Material	Fiberglass
Thickness	56 mm
Nominal Density	12 kg/m³
Width	1219 mm
Length per Roll	22.86 m
Installed Resistance	R-6.0 at 25% compression
Resistance Test Mean Temperature	24 °C
Uncompressed Conductivity	0.042 W/(m·K) at 24 °C
Surface Options	FSK, PSK or unfaced
Customization	Available for the actual insulation duty and operating environment.

Applications

Cooled supply duct wrapping
Medium-temperature-difference air distribution

Solutions for Your Application

A thin blanket does not meet the selected thermal target.

The deeper material raises the installed resistance to the selected R-6.0 level.

Corners can receive excessive compression.

Adequate cut allowance preserves blanket depth around the duct perimeter.

Available Options

Reinforced foil facing
Unfaced blanket supply

Planning a HVAC Duct Wrap Insulation 56 mm R-6.0 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
