The blade must return after an electrical interruption.
The spring provides return movement independently of the powered positioning stroke.
STJH-HVAC-DAMPER-ACTUATOR-10NM-SPRING
HVAC Damper Actuator 10 Nm 24 V Spring-Return
Proportional control with mechanical return when power is lost.
- The stored spring energy provides a defined power-loss movement.
- Manual crank operation supports local adjustment without a live drive command.
Product Introduction

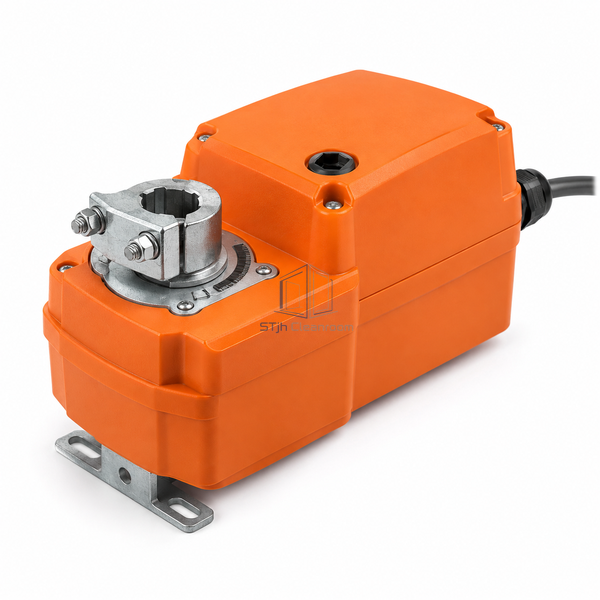

A spring pack stores energy during powered operation and drives the shaft to its return position after supply loss. The deeper housing accommodates that mechanism, while the analog input controls normal positioning.
Key Features
- The stored spring energy provides a defined power-loss movement.
- Manual crank operation supports local adjustment without a live drive command.
Technical Parameters
| Rated Torque | 10 Nm |
|---|---|
| Operating Supply | 24 V AC/DC |
| Input Signal | 2–10 V DC modulating |
| Return Mechanism | Mechanical spring |
| Powered Stroke Time | 95 s per 90 degrees |
| Fail-Safe Travel Time | Less than 20 s |
| Maximum Rotation | 95 degrees |
| Running Power | 3.5 W |
| Manual Override | 5 mm hex crank |
| Customization | Available for the intended return direction and damper-control arrangement. |
Applications
- Dampers requiring power-loss return
- Ventilation circuits with a defined de-energized position
Solutions for Your Application
The required safe direction differs between installations.
The mounting orientation establishes clockwise or counterclockwise return.
Available Options
- Shaft clamp insert
- Electrical connection style
- Mounting bracket
Planning a HVAC Damper Actuator 10 Nm 24 V Spring-Return specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
