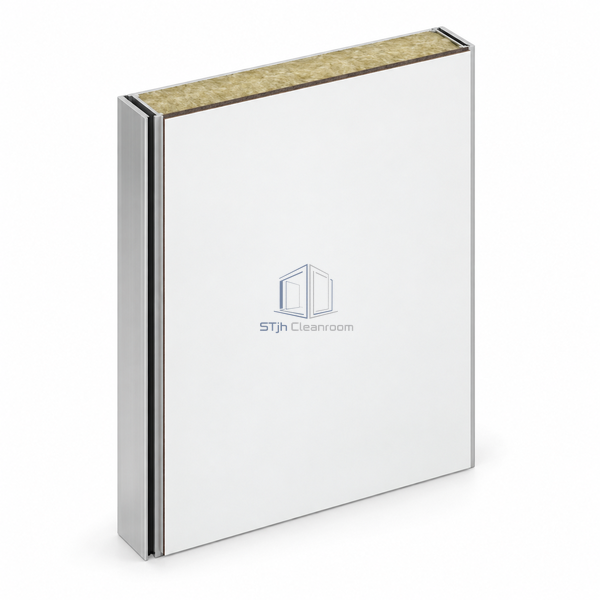

HPL-Faced Cleanroom Wall Panel 50 mm Rock Wool

Gasket-connected laminate wall panel with dense rock-wool infill.

Mineral core supports the laminate sandwich.
Gasket removal enables module disassembly.

Request a Quote Browse Products

Product Introduction

Hard HPL skins bond around a mineral center within anodized perimeter profiles. The gasket arrangement forms a compact joint and allows the panel to be released from the adjoining wall system.

Key Features

Mineral core supports the laminate sandwich.
Gasket removal enables module disassembly.

Technical Parameters

Core Material	Rock wool
Panel Thickness	50 mm
Standard Widths	1290, 1000, 600 or 280 mm
Maximum Length	3050 mm
HPL Facing Thickness	3 mm; 4 mm optional
Core Density	120 kg/m³
Frame Material	Anodized aluminum
Surface Finish	HPL, RAL 9016 standard
Joint Type	Aluminum profile with gasket
Customization	Available to suit the application and operating environment.

Applications

Durable laboratory partitions
Removable mineral-core room walls

Solutions for Your Application

Future equipment movement may require temporary wall access.

The gasket-connected module can be released rather than treated as a permanent lining.

The specification prefers mineral infill under laminate faces.

Dense rock wool supplies the hidden core material.

Available Options

4 mm laminate faces
Integrated cable duct

Planning a HPL-Faced Cleanroom Wall Panel 50 mm Rock Wool specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
