HPL-Faced Cleanroom Wall Panel 50 mm EPS

Removable HPL wall module with a low-density EPS center.

EPS lowers the core's contribution to panel mass.
Perimeter profiles provide a removable connection.

Request a Quote Browse Products

Product Introduction

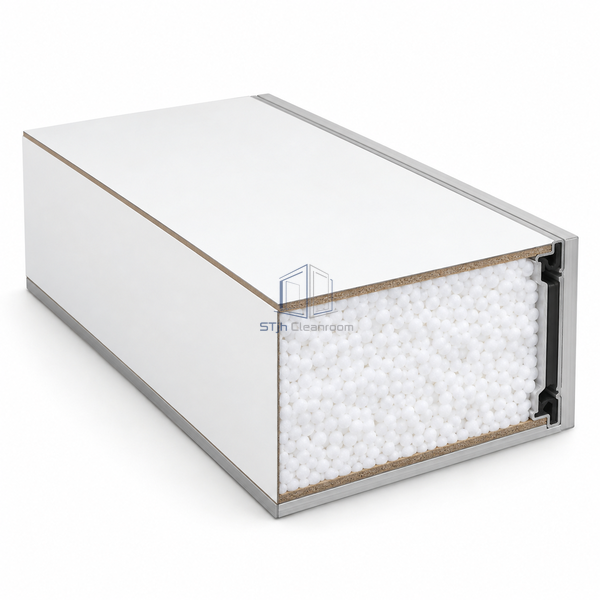

A light bead-foam infill sits behind the hard laminate surfaces. Anodized aluminum profiles and the gasketed joint complete the module, combining a durable exposed face with a lightweight internal material.

Key Features

EPS lowers the core's contribution to panel mass.
Perimeter profiles provide a removable connection.

Technical Parameters

Core Material	EPS
Panel Thickness	50 mm
Standard Widths	1290, 1000, 600 or 280 mm
Maximum Length	3050 mm
HPL Facing Thickness	3 mm; 4 mm optional
Core Density	14 kg/m³
Frame Material	Anodized aluminum
Surface Finish	RAL 9016 HPL
Joint Type	Gasketed aluminum profile
Customization	Available for the intended use and operating conditions.

Applications

General clean support rooms
Light laminate partition systems

Solutions for Your Application

A hard laminate finish does not require dense mineral insulation everywhere.

EPS provides a lighter core alternative beneath the same surface type.

Later layout changes may involve individual panels.

The gasketed perimeter permits module removal from the joint system.

Available Options

Thicker HPL face option
Cable duct integration

Planning a HPL-Faced Cleanroom Wall Panel 50 mm EPS specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
