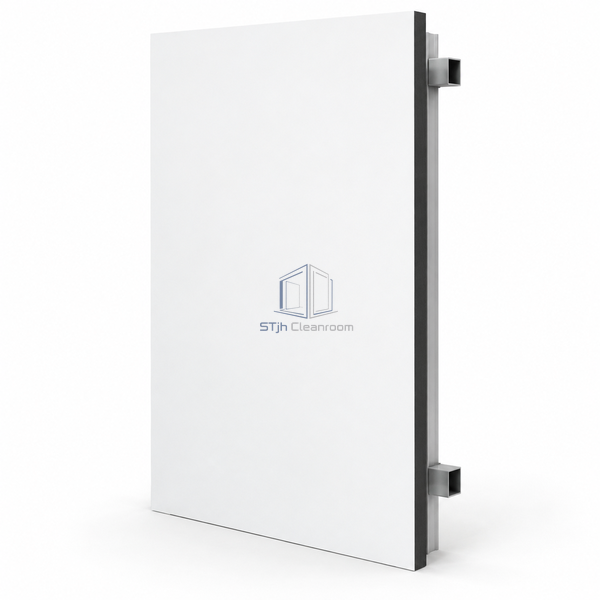

STJH-HPL-CLEANROOM-WALL-LINER-PANEL-55-FLOOR

HPL Cleanroom Wall Liner Panel 55 mm Floor-Extended

Floor-reaching HPL liner without a recessed base track.

Full-height face avoids a visible lower step.
Rear joint tube maintains panel alignment.
Laminate edge remains within a continuous lining run.

Request a Quote Browse Products

Product Introduction

The compact laminate sheet continues down to the floor boundary. A joint tube aligns neighboring sheets behind the face, retaining the 55 mm system build-up while eliminating the separate recessed plinth arrangement.

Key Features

Full-height face avoids a visible lower step.
Rear joint tube maintains panel alignment.
Laminate edge remains within a continuous lining run.

Technical Parameters

System Thickness	55 mm
Facing Thickness	12 mm
Panel Width	1286 mm
Standard Lengths	2490 or 2990 mm
Maximum Height	3000 mm
Base Arrangement	Panel extends to floor
Base Track	Omitted
Joint Tube Size	20 x 30 mm
Facing Material	Compact HPL
Customization	Available for the intended floor interface and wall height.

Applications

Continuous wall-to-floor lining
Interior cleanroom wall overlays

Solutions for Your Application

A recessed plinth would conflict with the floor detail.

The panel face extends directly to the floor.

Adjacent sheets can shift during installation.

The rear joint tube aligns their meeting edges.

Available Options

Cut-height panels
Matched internal corner details

Planning a HPL Cleanroom Wall Liner Panel 55 mm Floor-Extended specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
