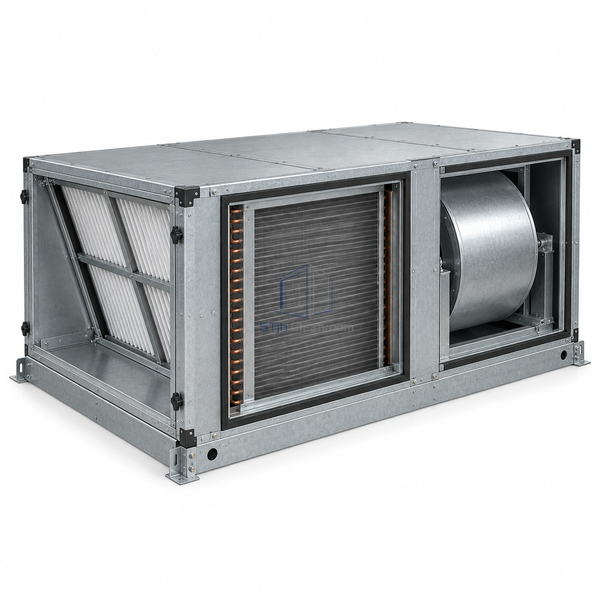

STjh 5000 CFM horizontal air handling unit with a wider coil section and angled filter compartment on white.

STJH-HORIZONTAL-AIR-HANDLING-UNIT-5000CFM

Horizontal Air Handling Unit 5000 CFM

A medium 5000 CFM horizontal air handler measuring 37 x 58 x 33 inches with a wider filter and coil face than the compact model.

5000 CFM nominal airflow
37 x 58 x 33 inch casing
Wider filter and coil face

Request a Quote Browse Products

Product Introduction

The 37 x 58 x 33 inch cabinet expands the air-treatment face for 5000 CFM while retaining a horizontal flow path. It suits a medium clean manufacturing system that has adequate linear plant space but benefits from lower cabinet height and straightforward inline duct connections.

Key Features

Medium horizontal capacity

The enlarged face supports practical coil and filter velocities at the 5000 CFM operating point.

Inline duct geometry

A horizontal treatment sequence can reduce transition complexity between return, supply and the equipment cabinet.

Filter-layout choice

Flat or angled filter sections can be selected around media depth and service access.

Technical Parameters

Nominal Airflow	5000 CFM
Cabinet Dimensions	37 x 58 x 33 in
Arrangement	Medium horizontal configuration
Coil Selection	Chilled water, hot water, DX or steam
Filter Section	Flat or angled bank
Casing Construction	Single- or double-wall option
Fan Assembly	Selected for airflow and external pressure
Wet Section	Cooling-coil drain pan
Installation	Indoor structural support or plant-room base
Customization	Filter layout, coil duty and fan selection can be configured for the intended application and operating environment.

Applications

Medium clean manufacturing supply air, pharmaceutical support zones, controlled packaging and laboratory departments with horizontal plant layouts.

Solutions for Your Application

The compact horizontal unit has insufficient coil face for the medium airflow and latent load.Use the 58 inch-wide cabinet and select the coil rows and circuiting for the verified duty.

Filter replacement space conflicts with adjacent ductwork.Choose flat or angled filter geometry and reserve the full media withdrawal path on the service side.

Available Options

Water, DX or steam coils, filter layout, casing wall type, fan assembly, access side, stainless drain pan and control sensors are available.

Planning a Horizontal Air Handling Unit 5000 CFM specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
